Schema FlightFollowing.xsd

AIM Bookshelf Click for FF message overviews.
Message ID   Associated Complex types
FF001 InFlightRerouteType
FF002 FlightInformationRequestType
FlightInformationResponseType
FF003 FlightTrackingDataFeedType
FF004 RecentlyClearedRouteRequestType
RecentlyClearedRouteResponseType


complexType CheckpointDefinitionType

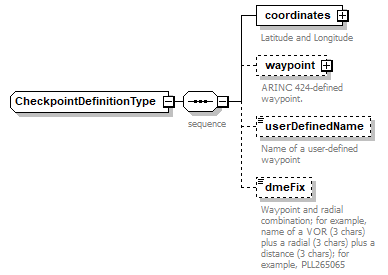

diagram FFSpec_p1.png
namespace http://www.jeppesen.com/aoc
children coordinates waypoint userDefinedName dmeFix

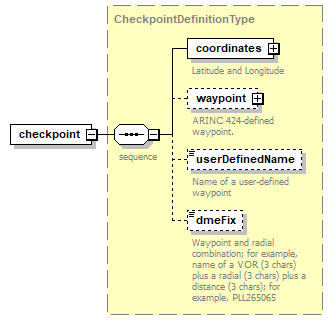

used by

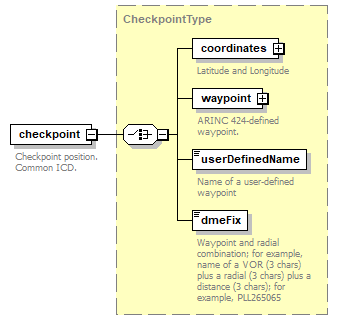

element FlightInfoCheckpointType/checkpoint

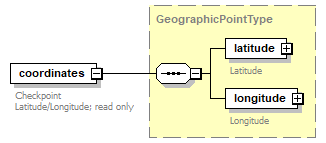

element CheckpointDefinitionType/coordinates
diagram FFSpec_p2.png
namespace http://www.jeppesen.com/aoc

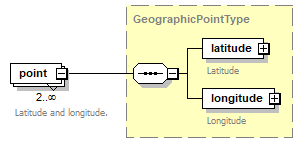

type GeographicPointType
properties
isRef 0
content complex
children latitude longitude
annotation
documentation
Latitude and Longitude

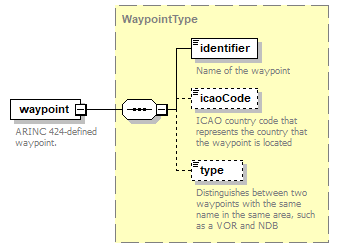

element CheckpointDefinitionType/waypoint

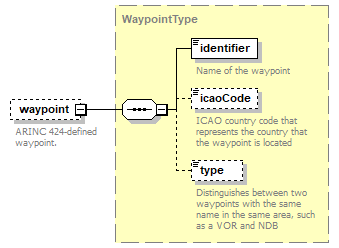

diagram FFSpec_p3.png
namespace http://www.jeppesen.com/aoc

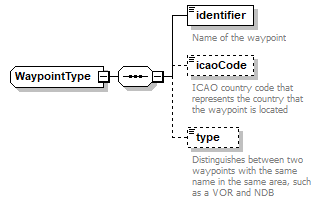

type WaypointType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children identifier icaoCode type
annotation
documentation
ARINC 424-defined waypoint.

element CheckpointDefinitionType/userDefinedName
diagram FFSpec_p4.png
namespace http://www.jeppesen.com/aoc
type String12
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
maxLength 12
annotation
documentation
Name of a user-defined waypoint

element CheckpointDefinitionType/dmeFix
diagram FFSpec_p5.png
namespace http://www.jeppesen.com/aoc
type String9
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
maxLength
annotation
documentation
Waypoint and radial combination; for example, name of a VOR (3 chars) plus a radial (3 chars) plus a distance (3 chars); for example, PLL265065

complexType FlightFollowingType

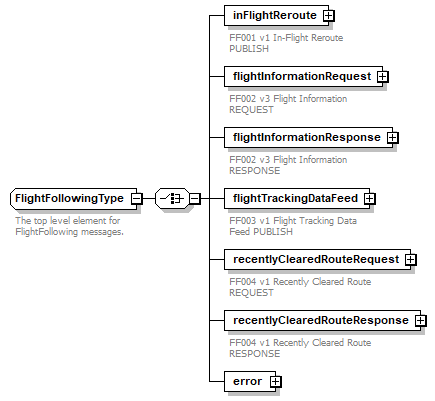

diagram FFSpec_p6.png
namespace http://www.jeppesen.com/aoc
children inFlightReroute flightInformationRequest flightInformationResponse flightTrackingDataFeed recentlyClearedRouteRequest recentlyClearedRouteResponse error
annotation
documentation
The top level element for FlightFollowing messages.
documentation
Copyright © 2009-2020 Jeppesen.   All rights reserved.
Your use of the AOC Bookshelf and all supporting documentation is subject to a separate license agreement between you and Jeppesen, a copy of which is included in the zip file or can be obtained from Jeppesen.
The AOC Bookshelf is delivered AS IS without warranty of any kind and is not guaranteed to be free from errors or defects.   You rely on the AOC Bookshelf at your own risk.  No support for the AOC Bookshelf is implied through its publication.
The AOC Bookshelf is intended solely for use as a reference and examples of interfaces to Jeppesen systems.  Jeppesen may revise, update or cease publication at any time, without notice.  Building to the specifications set forth in the AOC Bookshelf does not mean that your intended integration needs will be met or that an interface will function as documented.  We recommend contacting Jeppesen directly to discuss professional services options with respect to production application integration and validation efforts.

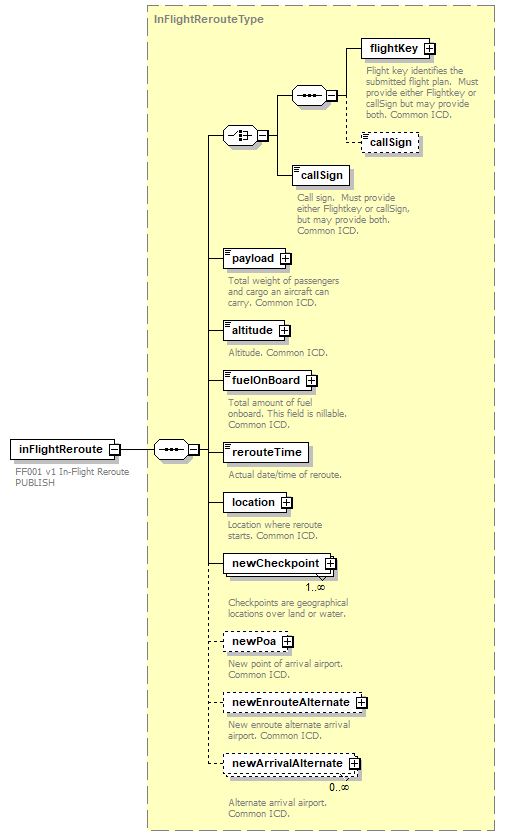

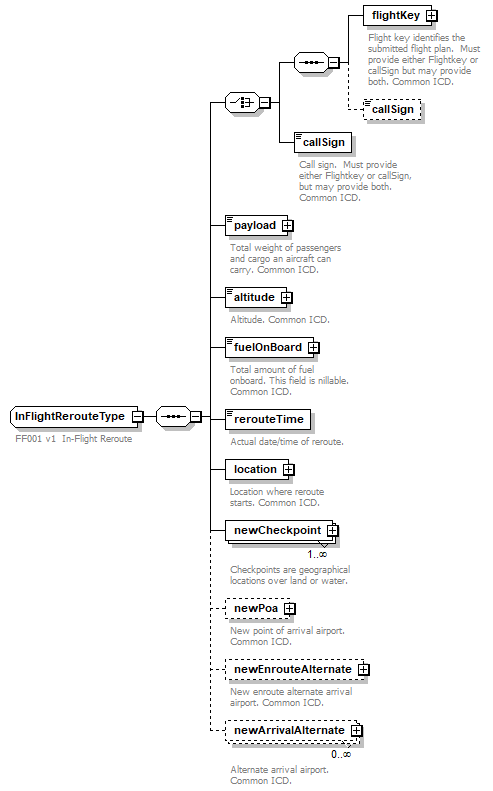

element FlightFollowingType/inFlightReroute
diagram FFSpec_p7.png
namespace http://www.jeppesen.com/aoc
type InFlightRerouteType
properties
isRef 0
content complex
children flightKey callSign callSign payload altitude fuelOnBoard rerouteTime location newCheckpoint newPoa newEnrouteAlternate newArrivalAlternate
annotation
documentation
FF001 v1 In-Flight Reroute PUBLISH

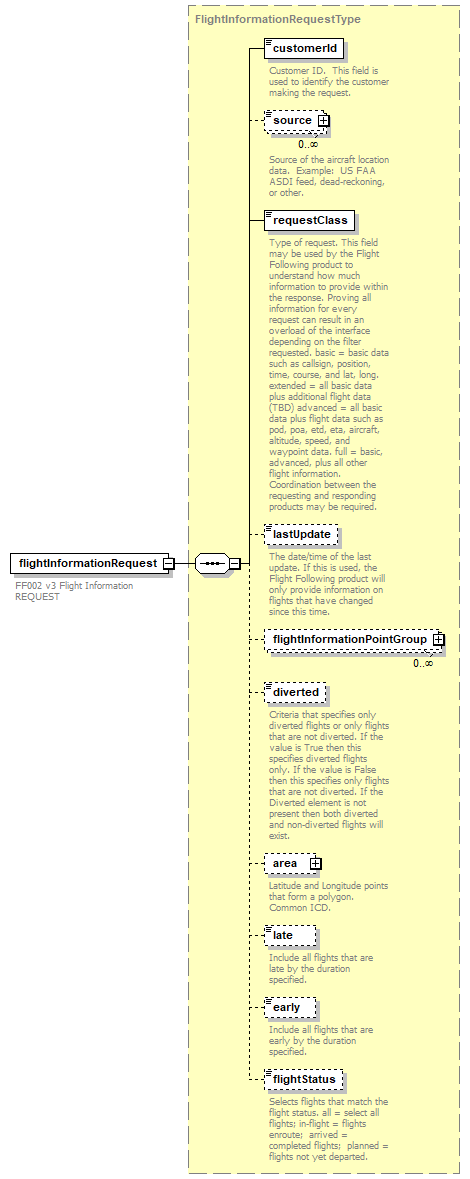

element FlightFollowingType/flightInformationRequest
diagram FFSpec_p8.png
namespace http://www.jeppesen.com/aoc
type FlightInformationRequestType
properties
isRef 0
content complex
children customerId source requestClass lastUpdate flightInformationPointGroup diverted area late early flightStatus
annotation
documentation
FF002 v3 Flight Information REQUEST

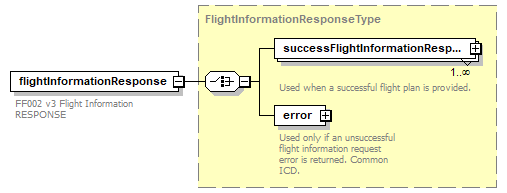

element FlightFollowingType/flightInformationResponse
diagram FFSpec_p9.png
namespace http://www.jeppesen.com/aoc
type FlightInformationResponseType
properties
isRef 0
content complex

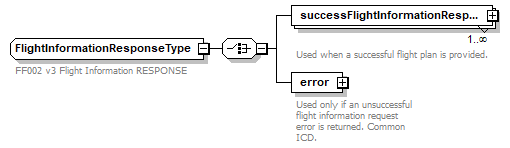

children successFlightInformationResponse error
annotation
documentation
FF002 v3 Flight Information RESPONSE

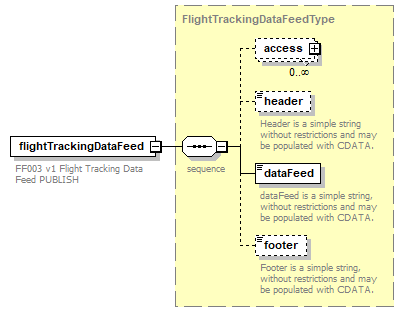

element FlightFollowingType/flightTrackingDataFeed
diagram FFSpec_p10.png
namespace http://www.jeppesen.com/aoc
type FlightTrackingDataFeedType
properties
isRef 0
content complex
children access header dataFeed footer
annotation
documentation

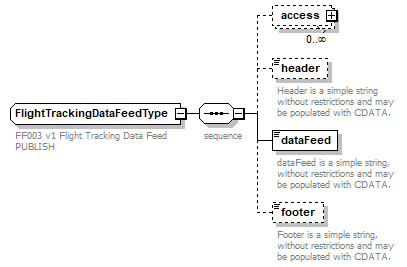

FF003 v1 Flight Tracking Data Feed PUBLISH

element FlightFollowingType/recentlyClearedRouteRequest

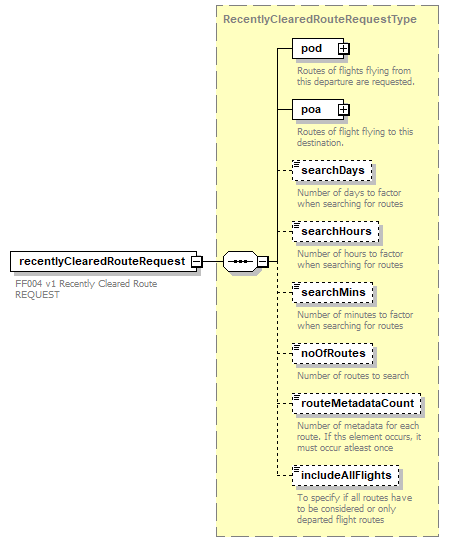

diagram FFSpec_p11.png
namespace http://www.jeppesen.com/aoc
type RecentlyClearedRouteRequestType
properties
isRef 0
content complex

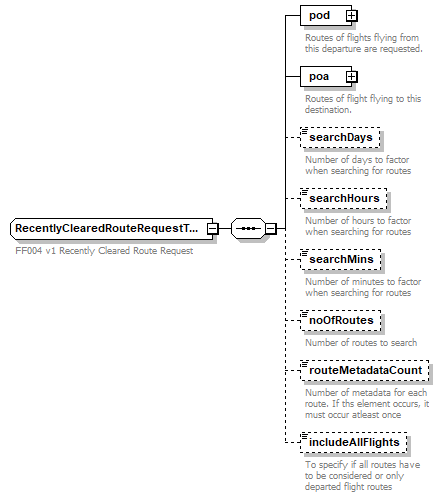

children pod poa searchDays searchHours searchMins noOfRoutes routeMetadataCount includeAllFlights
annotation
documentation
FF004 v1 Recently Cleared Route REQUEST

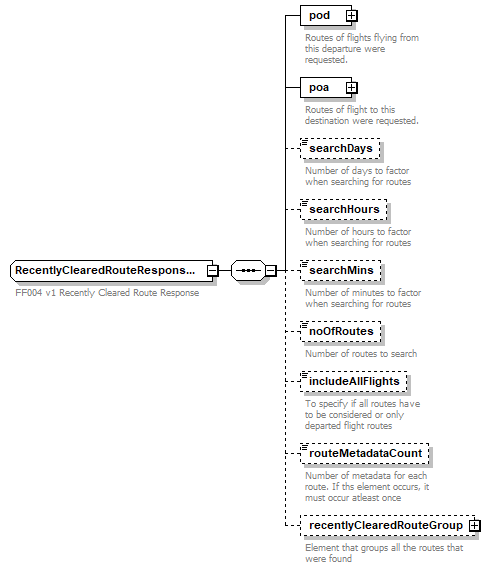

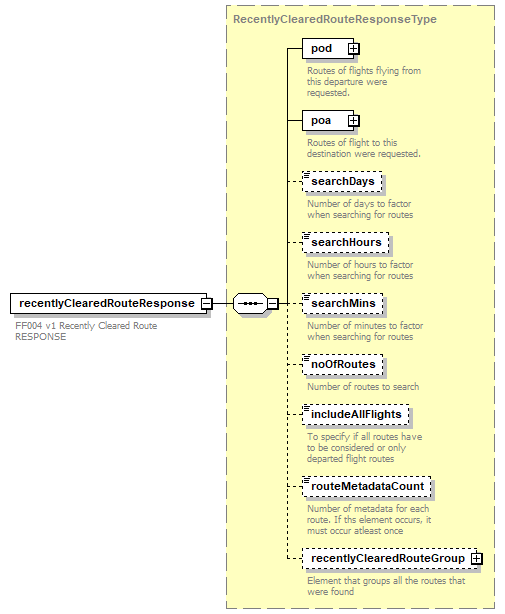

element FlightFollowingType/recentlyClearedRouteResponse
diagram FFSpec_p12.png
namespace http://www.jeppesen.com/aoc
type RecentlyClearedRouteResponseType
properties
isRef 0
content complex
children pod poa searchDays searchHours searchMins noOfRoutes includeAllFlights routeMetadataCount recentlyClearedRouteGroup
annotation
documentation
FF004 v1 Recently Cleared Route RESPONSE

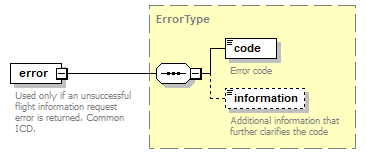

element FlightFollowingType/error
diagram FFSpec_p13.png
namespace http://www.jeppesen.com/aoc
type ErrorType
properties
isRef 0
content complex
children code information

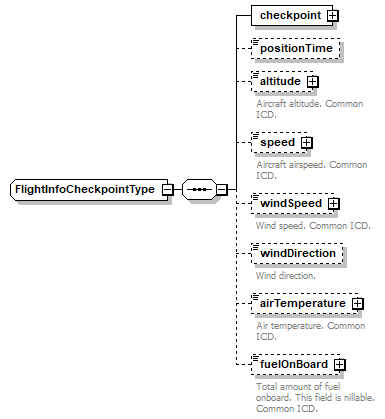

complexType FlightInfoCheckpointType
diagram FFSpec_p14.png
namespace http://www.jeppesen.com/aoc
children checkpoint positionTime altitude speed windSpeed windDirection airTemperature fuelOnBoard
used by
elements FlightPlanType/checkpointInformation PositionReportType/positionReportGroup/currentPosition SuccessFlightInformationResponseType/successFlightInformationResponseGroup/nextCheckpointInformation

element FlightInfoCheckpointType/checkpoint
diagram FFSpec_p15.png
namespace http://www.jeppesen.com/aoc
type CheckpointDefinitionType
properties
isRef 0
content complex
children coordinates waypoint userDefinedName dmeFix

element FlightInfoCheckpointType/positionTime
diagram FFSpec_p16.png
namespace http://www.jeppesen.com/aoc
type xs:dateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple

element FlightInfoCheckpointType/altitude
diagram FFSpec_p17.png
namespace http://www.jeppesen.com/aoc
type AltitudeType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
facets
Kind Value annotation
minInclusive -2000
maxInclusive 250000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAltitudeHeightEnumTyperequired
documentation
ft = feet
m = meters
fl = flight level
mb = millibars
annotation
documentation
Aircraft altitude. Common ICD.

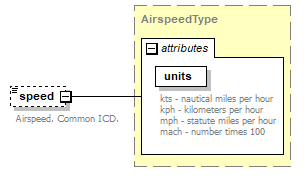

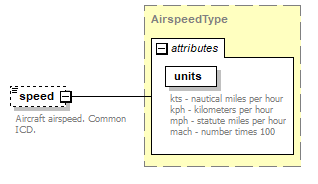

element FlightInfoCheckpointType/speed
diagram FFSpec_p18.png
namespace http://www.jeppesen.com/aoc
type AirspeedType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
facets
Kind Value annotation
minInclusive
maxInclusive 10000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAirspeedUnitsEnumTyperequired
documentation
kts - nautical miles per hour
kph - kilometers per hour
mph - statute miles per hour
mach - number times 100
annotation
documentation
Aircraft airspeed. Common ICD.

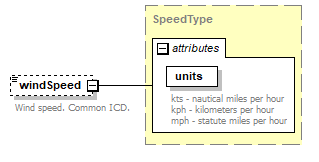

element FlightInfoCheckpointType/windSpeed
diagram FFSpec_p19.png
namespace http://www.jeppesen.com/aoc
type SpeedType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
facets
Kind Value annotation
minInclusive -400
maxInclusive 400
attributes
Name  Type  Use  Default  Fixed  annotation
unitsSpeedUnitsEnumTyperequired
documentation
kts - nautical miles per hour
kph - kilometers per hour
mph - statute miles per hour
annotation
documentation
Wind speed. Common ICD.

element FlightInfoCheckpointType/windDirection
diagram FFSpec_p20.png
namespace http://www.jeppesen.com/aoc
type AzimuthType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minInclusive
maxInclusive 360
annotation
documentation
Wind direction.

element FlightInfoCheckpointType/airTemperature
diagram FFSpec_p21.png
namespace http://www.jeppesen.com/aoc
type TemperatureType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
facets
Kind Value annotation
minInclusive -459
maxInclusive 373
attributes
Name  Type  Use  Default  Fixed  annotation
unitsTemperatureUnitsEnumTyperequired
documentation
C = Celcius
F = Fahrenheit
K = Kelvin
annotation
documentation
Air temperature. Common ICD.

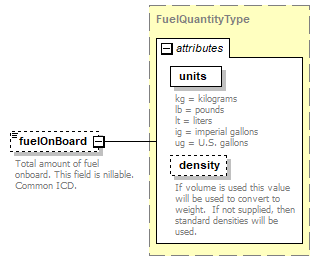

element FlightInfoCheckpointType/fuelOnBoard

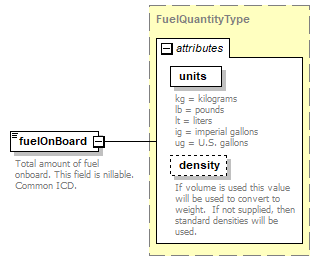

diagram FFSpec_p22.png
namespace http://www.jeppesen.com/aoc
type FuelQuantityType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
nillable true
facets
Kind Value annotation
minInclusive
maxInclusive 25000000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsFuelQuantityUnitsEnumrequired
documentation
kg = kilograms
lb = pounds
lt = liters
ig = imperial gallons
ug = U.S. gallons
densityxs:double
documentation
If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.
annotation
documentation
Total amount of fuel onboard. This field is nillable. Common ICD.

complexType FlightInformationPointGroupType

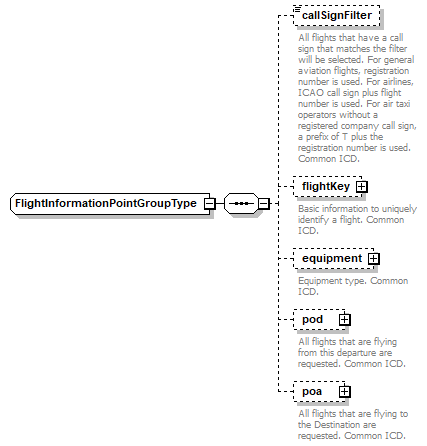

diagram FFSpec_p23.png
namespace http://www.jeppesen.com/aoc

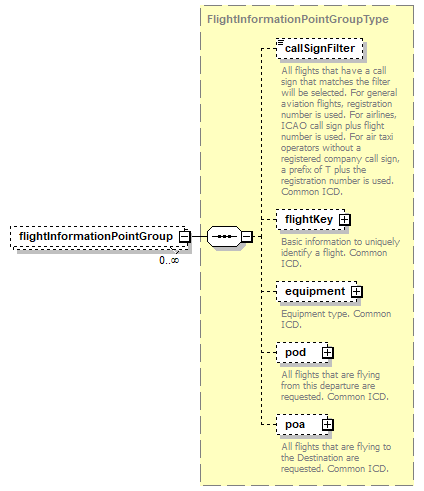

children callSignFilter flightKey equipment pod poa
used by
element FlightInformationRequestType/flightInformationPointGroup

element FlightInformationPointGroupType/callSignFilter
diagram FFSpec_p24.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
maxLength
annotation
documentation
All flights that have a call sign that matches the filter will be selected. For general aviation flights, registration number is used. For airlines, ICAO call sign plus flight number is used. For air taxi operators without a registered company call sign, a prefix of T plus the registration number is used. Common ICD.

element FlightInformationPointGroupType/flightKey
diagram FFSpec_p25.png
namespace http://www.jeppesen.com/aoc
type FlightKeyType
properties
isRef 0
minOcc 0
maxOcc 1
content complex

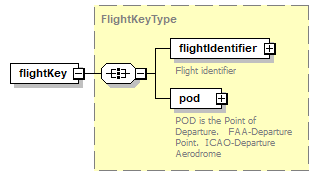

children flightIdentifier pod
annotation
documentation

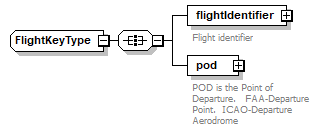

Basic information to uniquely identify a flight. Common ICD.

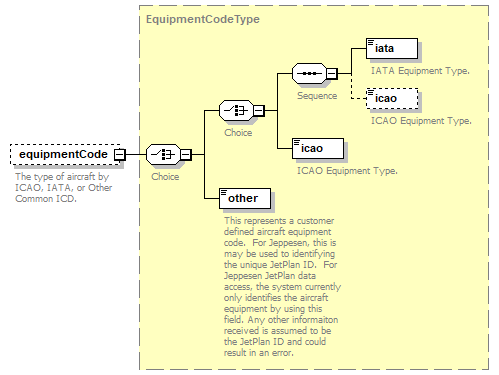

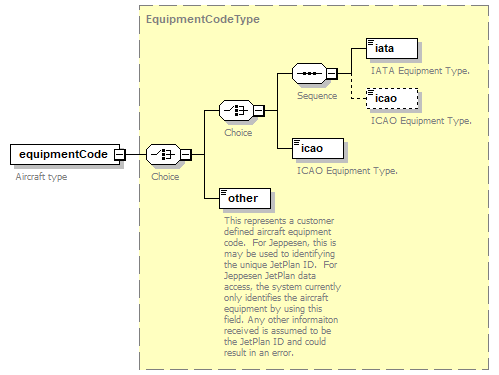

element FlightInformationPointGroupType/equipment
diagram FFSpec_p26.png
namespace http://www.jeppesen.com/aoc

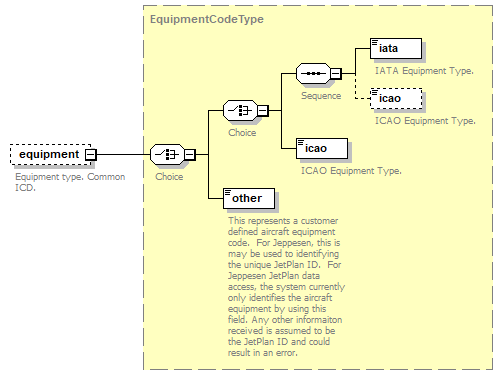

type EquipmentCodeType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children iata icao icao other
annotation
documentation
Equipment type. Common ICD.

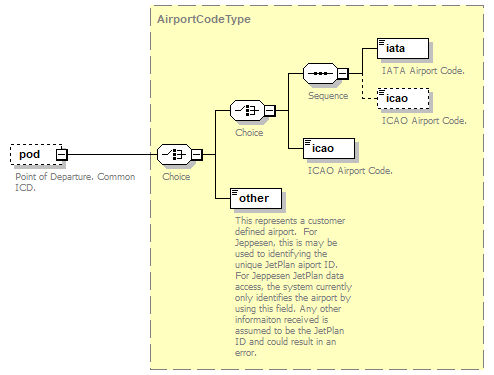

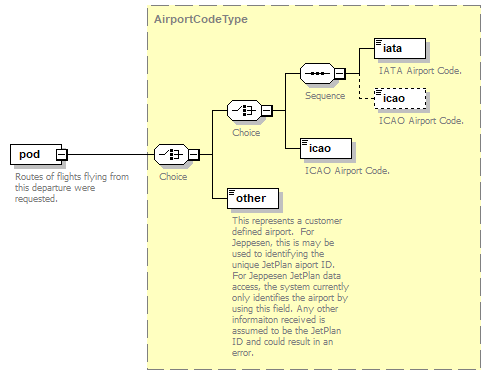

element FlightInformationPointGroupType/pod
diagram FFSpec_p27.png
namespace http://www.jeppesen.com/aoc

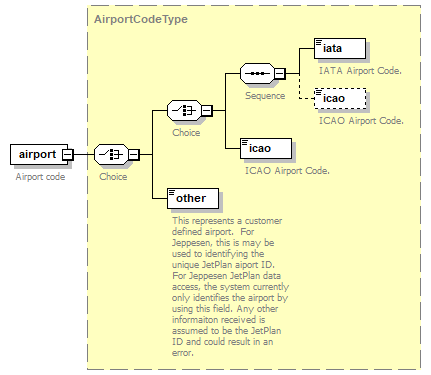

type AirportCodeType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children iata icao icao other
annotation
documentation
All flights that are flying from this departure are requested. Common ICD.

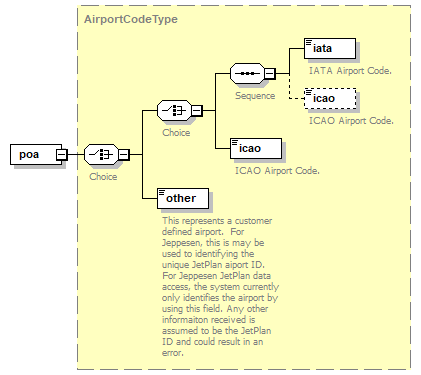

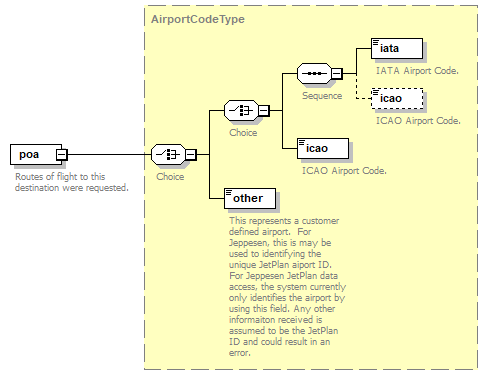

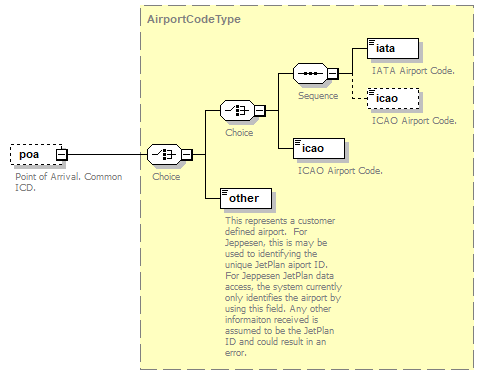

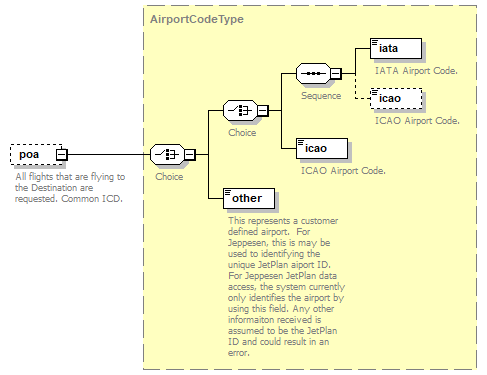

element FlightInformationPointGroupType/poa
diagram FFSpec_p28.png
namespace http://www.jeppesen.com/aoc
type AirportCodeType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children iata icao icao other
annotation
documentation
All flights that are flying to the Destination are requested. Common ICD.

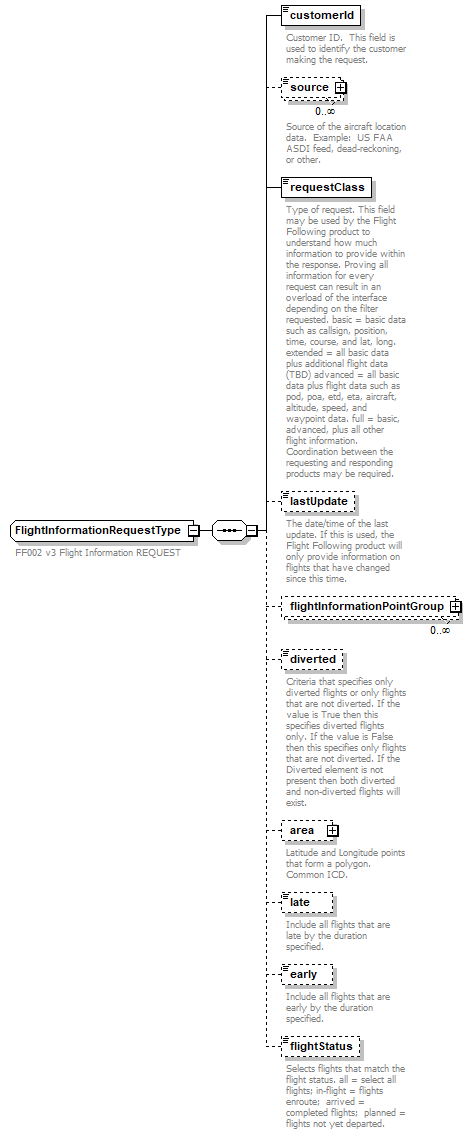

complexType FlightInformationRequestType
diagram FFSpec_p29.png
namespace http://www.jeppesen.com/aoc
children customerId source requestClass lastUpdate flightInformationPointGroup diverted area late early flightStatus
used by
element FlightFollowingType/flightInformationRequest
annotation
documentation
FF002 v3 Flight Information REQUEST

element FlightInformationRequestType/customerId
diagram FFSpec_p30.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
content simple
annotation
documentation
Customer ID.  This field is used to identify the customer making the request.

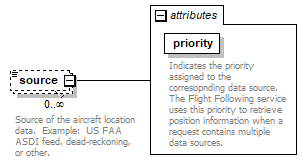

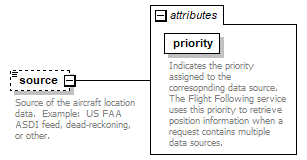

element FlightInformationRequestType/source
diagram FFSpec_p31.png
namespace http://www.jeppesen.com/aoc
type extension of xs:string
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
attributes
Name  Type  Use  Default  Fixed  annotation
priorityxs:positiveIntegerrequired
documentation
Indicates the priority assigned to the corresopnding data source. The Flight Following service uses this priority to retrieve position information when a request contains multiple data sources.
annotation
documentation
Source of the aircraft location data.  Example:  US FAA ASDI feed, dead-reckoning, or other.

attribute FlightInformationRequestType/source/@priority
type xs:positiveInteger
properties
isRef 0
use required
annotation
documentation
Indicates the priority assigned to the corresopnding data source. The Flight Following service uses this priority to retrieve position information when a request contains multiple data sources.

element FlightInformationRequestType/requestClass

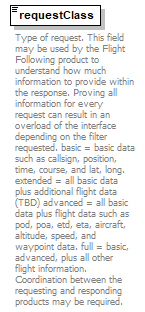

diagram FFSpec_p32.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
isRef 0
content simple
facets
Kind Value annotation
enumeration basic
enumeration extended
enumeration advanced
enumeration full
annotation
documentation
Type of request. This field may be used by the Flight Following product to understand how much information to provide within the response. Proving all information for every request can result in an overload of the interface depending on the filter requested. basic = basic data such as callsign, position, time, course, and lat, long. extended = all basic data plus additional flight data (TBD) advanced = all basic data plus flight data such as pod, poa, etd, eta, aircraft, altitude, speed, and waypoint data. full = basic, advanced, plus all other flight information. Coordination between the requesting and responding products may be required.

element FlightInformationRequestType/lastUpdate
diagram FFSpec_p33.png
namespace http://www.jeppesen.com/aoc
type xs:dateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
The date/time of the last update. If this is used, the Flight Following product will only provide information on flights that have changed since this time.

element FlightInformationRequestType/flightInformationPointGroup
diagram FFSpec_p34.png
namespace http://www.jeppesen.com/aoc
type FlightInformationPointGroupType
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
children callSignFilter flightKey equipment pod poa

element FlightInformationRequestType/diverted
diagram FFSpec_p35.png
namespace http://www.jeppesen.com/aoc
type xs:boolean
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
Criteria that specifies only diverted flights or only flights that are not diverted. If the value is True then this specifies diverted flights only. If the value is False then this specifies only flights that are not diverted. If the Diverted element is not present then both diverted and non-diverted flights will exist.

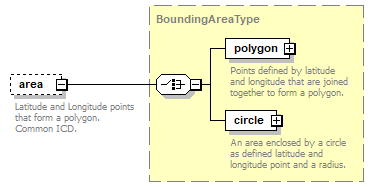

element FlightInformationRequestType/area
diagram FFSpec_p36.png
namespace http://www.jeppesen.com/aoc
type BoundingAreaType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children polygon circle
annotation
documentation
Latitude and Longitude points that form a polygon. Common ICD.

element FlightInformationRequestType/late
diagram FFSpec_p37.png
namespace http://www.jeppesen.com/aoc
type xs:duration
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
Include all flights that are late by the duration specified.

element FlightInformationRequestType/early
diagram FFSpec_p38.png
namespace http://www.jeppesen.com/aoc
type xs:duration
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
Include all flights that are early by the duration specified.

element FlightInformationRequestType/flightStatus
diagram FFSpec_p39.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
enumeration all
enumeration in-flight
enumeration arrived
enumeration planned
annotation
documentation
Selects flights that match the flight status. all = select all flights; in-flight = flights enroute;  arrived = completed flights;  planned = flights not yet departed.

complexType FlightInformationResponseType
diagram FFSpec_p40.png
namespace http://www.jeppesen.com/aoc
children successFlightInformationResponse error
used by
element FlightFollowingType/flightInformationResponse
annotation
documentation
FF002 v3 Flight Information RESPONSE

element FlightInformationResponseType/successFlightInformationResponse
diagram FFSpec_p41.png
namespace http://www.jeppesen.com/aoc
type SuccessFlightInformationResponseType
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children successFlightInformationResponseGroup
annotation
documentation
Used when a successful flight plan is provided.

element FlightInformationResponseType/error
diagram FFSpec_p42.png
namespace http://www.jeppesen.com/aoc
type ErrorType
properties
isRef 0
content complex
children code information
annotation
documentation
Used only if an unsuccessful flight information request error is returned. Common ICD.

complexType FlightPlanType

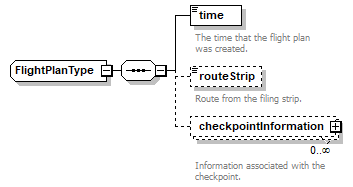

diagram FFSpec_p43.png
namespace http://www.jeppesen.com/aoc
children time routeStrip checkpointInformation
used by
elements SuccessFlightInformationResponseType/successFlightInformationResponseGroup/currentPlan SuccessFlightInformationResponseType/successFlightInformationResponseGroup/originalPlan

element FlightPlanType/time
diagram FFSpec_p44.png
namespace http://www.jeppesen.com/aoc
type xs:dateTime
properties
isRef 0
content simple
annotation
documentation
The time that the flight plan was created.

element FlightPlanType/routeStrip
diagram FFSpec_p45.png
namespace http://www.jeppesen.com/aoc
type String1000
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
maxLength 1000
annotation
documentation
Route from the filing strip.

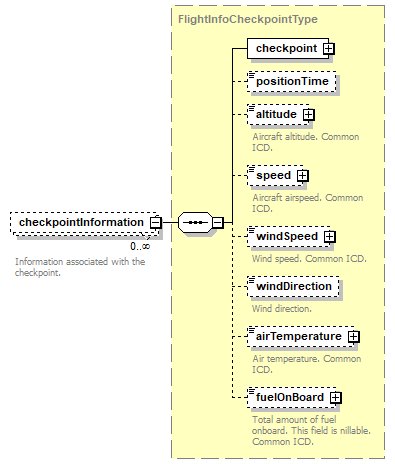

element FlightPlanType/checkpointInformation
diagram FFSpec_p46.png
namespace http://www.jeppesen.com/aoc
type FlightInfoCheckpointType
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
children checkpoint positionTime altitude speed windSpeed windDirection airTemperature fuelOnBoard
annotation
documentation
Information associated with the checkpoint.

complexType FlightTrackingDataFeedType
diagram FFSpec_p47.png
namespace http://www.jeppesen.com/aoc
children access header dataFeed footer
used by
element FlightFollowingType/flightTrackingDataFeed
annotation
documentation
FF003 v1 Flight Tracking Data Feed PUBLISH

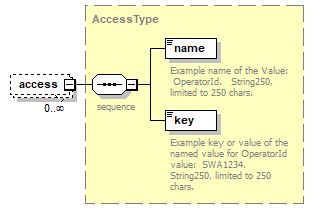

element FlightTrackingDataFeedType/access
diagram FFSpec_p48.png
namespace http://www.jeppesen.com/aoc
type AccessType
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
children name key

element FlightTrackingDataFeedType/header
diagram FFSpec_p49.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
Header is a simple string without restrictions and may be populated with CDATA.

element FlightTrackingDataFeedType/dataFeed
diagram FFSpec_p50.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
content simple
annotation
documentation
dataFeed is a simple string, without restrictions and may be populated with CDATA.

element FlightTrackingDataFeedType/footer
diagram FFSpec_p51.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
Footer is a simple string, without restrictions and may be populated with CDATA.

complexType InFlightRerouteType
diagram FFSpec_p52.png
namespace http://www.jeppesen.com/aoc
children flightKey callSign callSign payload altitude fuelOnBoard rerouteTime location newCheckpoint newPoa newEnrouteAlternate newArrivalAlternate
used by
element FlightFollowingType/inFlightReroute
annotation
documentation
FF001 v1  In-Flight Reroute

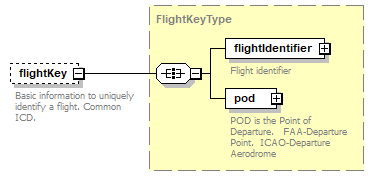

element InFlightRerouteType/flightKey
diagram FFSpec_p53.png
namespace http://www.jeppesen.com/aoc
type FlightKeyType
properties
isRef 0
content complex
children flightIdentifier pod
annotation
documentation

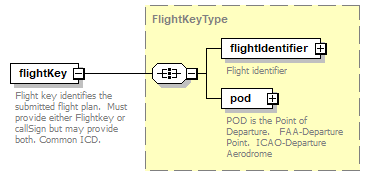

Flight key identifies the submitted flight plan.  Must provide either Flightkey or callSign but may provide both. Common ICD.

element InFlightRerouteType/callSign
diagram FFSpec_p54.png
namespace http://www.jeppesen.com/aoc
type CallSignType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength
maxLength

element InFlightRerouteType/callSign
diagram FFSpec_p55.png
namespace http://www.jeppesen.com/aoc
type CallSignType
properties
isRef 0
content simple
facets
Kind Value annotation
minLength
maxLength
annotation
documentation
Call sign.  Must provide either Flightkey or callSign, but may provide both. Common ICD.

element InFlightRerouteType/payload
diagram FFSpec_p56.png
namespace http://www.jeppesen.com/aoc
type TotalWeightType
properties
isRef 0
content complex
facets
Kind Value annotation
maxInclusive 4000000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsBasicWeightEnumTyperequired
documentation
lb = pounds
kg = kilograms
annotation
documentation
Total weight of passengers and cargo an aircraft can carry. Common ICD.

element InFlightRerouteType/altitude
diagram FFSpec_p57.png
namespace http://www.jeppesen.com/aoc
type AltitudeType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive -2000
maxInclusive 250000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAltitudeHeightEnumTyperequired
documentation
ft = feet
m = meters
fl = flight level
mb = millibars
annotation
documentation
Altitude. Common ICD.

element InFlightRerouteType/fuelOnBoard
diagram FFSpec_p58.png
namespace http://www.jeppesen.com/aoc
type FuelQuantityType
properties
isRef 0
content complex
nillable true
facets
Kind Value annotation
minInclusive
maxInclusive 25000000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsFuelQuantityUnitsEnumrequired
documentation
kg = kilograms
lb = pounds
lt = liters
ig = imperial gallons
ug = U.S. gallons
densityxs:double
documentation
If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.
annotation
documentation
Total amount of fuel onboard. This field is nillable. Common ICD.

element InFlightRerouteType/rerouteTime
diagram FFSpec_p59.png
namespace http://www.jeppesen.com/aoc
type xs:dateTime
properties
isRef 0
content simple
annotation
documentation
Actual date/time of reroute.

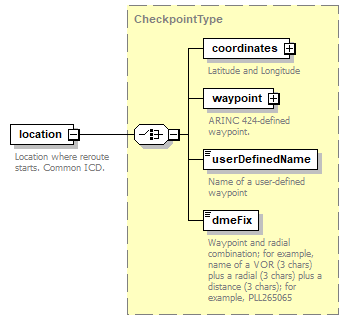

element InFlightRerouteType/location
diagram FFSpec_p60.png
namespace http://www.jeppesen.com/aoc
type CheckpointType
properties
isRef 0
content complex
children coordinates waypoint userDefinedName dmeFix
annotation
documentation
Location where reroute starts. Common ICD.

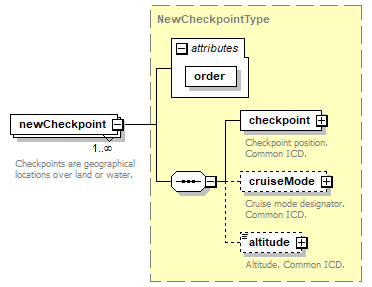

element InFlightRerouteType/newCheckpoint
diagram FFSpec_p61.png
namespace http://www.jeppesen.com/aoc
type NewCheckpointType
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children checkpoint cruiseMode altitude
attributes
Name  Type  Use  Default  Fixed  annotation
orderInteger1to1000required
annotation
documentation
Checkpoints are geographical locations over land or water.

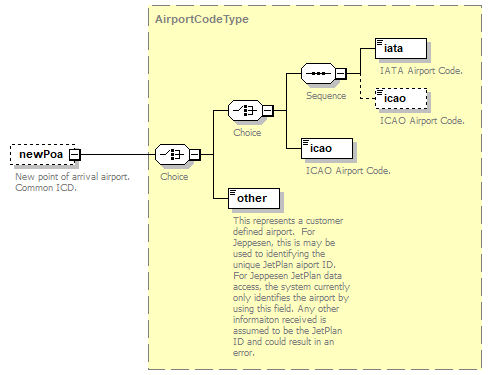

element InFlightRerouteType/newPoa
diagram FFSpec_p62.png
namespace http://www.jeppesen.com/aoc

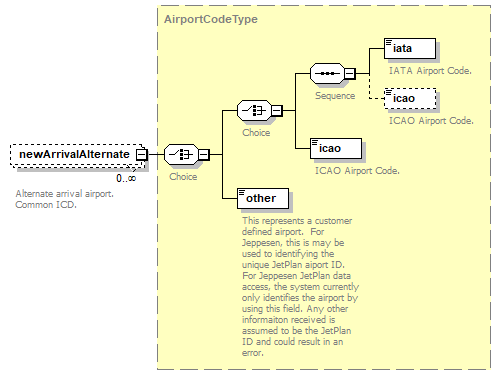

type AirportCodeType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children iata icao icao other
annotation
documentation
New point of arrival airport. Common ICD.

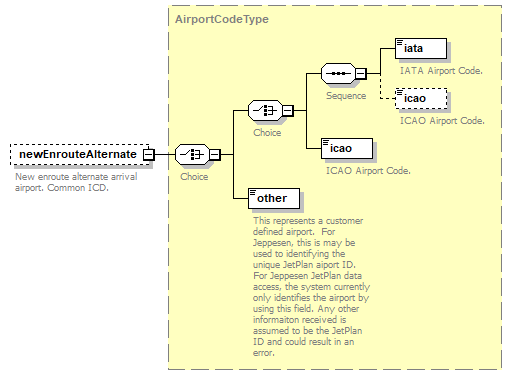

element InFlightRerouteType/newEnrouteAlternate
diagram FFSpec_p63.png
namespace http://www.jeppesen.com/aoc
type AirportCodeType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children iata icao icao other
annotation
documentation
New enroute alternate arrival airport. Common ICD.

element InFlightRerouteType/newArrivalAlternate
diagram FFSpec_p64.png
namespace http://www.jeppesen.com/aoc
type AirportCodeType
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
children iata icao icao other
annotation
documentation
Alternate arrival airport. Common ICD.

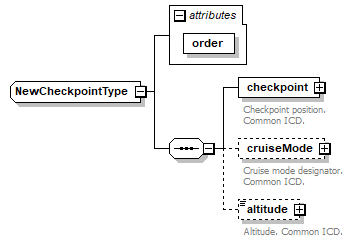

complexType NewCheckpointType
diagram FFSpec_p65.png
namespace http://www.jeppesen.com/aoc
children checkpoint cruiseMode altitude
used by
element InFlightRerouteType/newCheckpoint
attributes
Name  Type  Use  Default  Fixed  annotation
orderInteger1to1000required

attribute NewCheckpointType/@order
type Integer1to1000
properties
isRef 0
use required
facets
Kind Value annotation
minInclusive
maxInclusive 1000

element NewCheckpointType/checkpoint
diagram FFSpec_p66.png
namespace http://www.jeppesen.com/aoc
type CheckpointType
properties
isRef 0
content complex
children coordinates waypoint userDefinedName dmeFix
annotation
documentation
Checkpoint position. Common ICD.

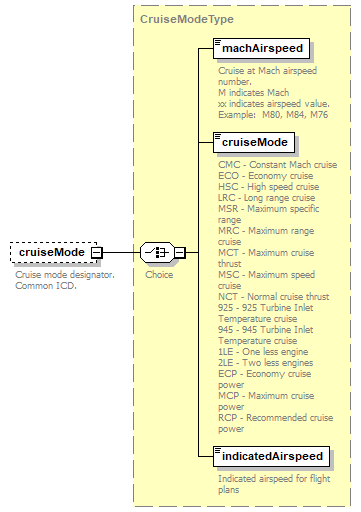

element NewCheckpointType/cruiseMode
diagram FFSpec_p67.png
namespace http://www.jeppesen.com/aoc
type CruiseModeType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children machAirspeed cruiseMode indicatedAirspeed
annotation
documentation
Cruise mode designator. Common ICD.

element NewCheckpointType/altitude
diagram FFSpec_p68.png
namespace http://www.jeppesen.com/aoc
type AltitudeType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
facets
Kind Value annotation
minInclusive -2000
maxInclusive 250000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAltitudeHeightEnumTyperequired
documentation
ft = feet
m = meters
fl = flight level
mb = millibars
annotation
documentation
Altitude. Common ICD.

complexType PositionReportType
diagram FFSpec_p69.png
namespace http://www.jeppesen.com/aoc
children positionReportGroup
used by
element SuccessFlightInformationResponseType/successFlightInformationResponseGroup/positionReport

element PositionReportType/positionReportGroup

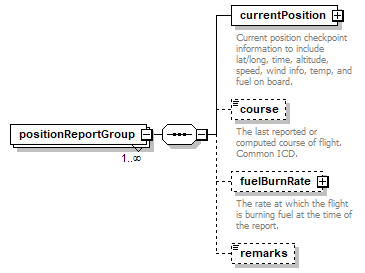

diagram FFSpec_p70.png
namespace http://www.jeppesen.com/aoc
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children currentPosition course fuelBurnRate remarks

element PositionReportType/positionReportGroup/currentPosition

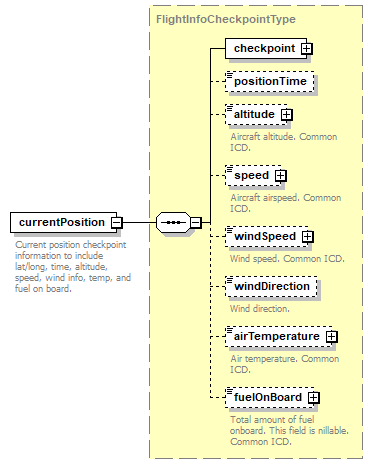

diagram FFSpec_p71.png
namespace http://www.jeppesen.com/aoc
type FlightInfoCheckpointType
properties
isRef 0
content complex
children checkpoint positionTime altitude speed windSpeed windDirection airTemperature fuelOnBoard
annotation
documentation
Current position checkpoint information to include lat/long, time, altitude, speed, wind info, temp, and fuel on board.

element PositionReportType/positionReportGroup/course
diagram FFSpec_p72.png
namespace http://www.jeppesen.com/aoc
type AzimuthType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minInclusive
maxInclusive 360
annotation
documentation
The last reported or computed course of flight. Common ICD.

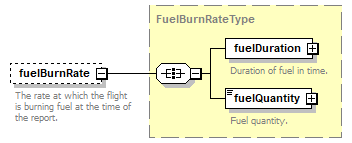

element PositionReportType/positionReportGroup/fuelBurnRate
diagram FFSpec_p73.png
namespace http://www.jeppesen.com/aoc
type FuelBurnRateType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children fuelDuration fuelQuantity
annotation
documentation
The rate at which the flight is burning fuel at the time of the report.

element PositionReportType/positionReportGroup/remarks
diagram FFSpec_p74.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple

complexType RecentlyClearedRouteGroupType
diagram FFSpec_p75.png
namespace http://www.jeppesen.com/aoc

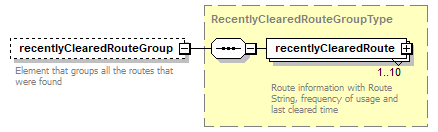

children recentlyClearedRoute
used by
element RecentlyClearedRouteResponseType/recentlyClearedRouteGroup

element RecentlyClearedRouteGroupType/recentlyClearedRoute

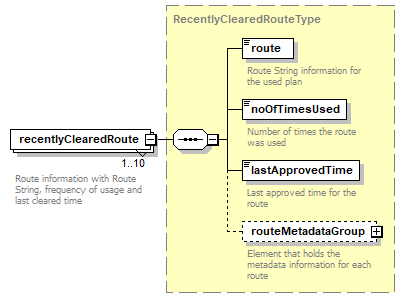

diagram FFSpec_p76.png
namespace http://www.jeppesen.com/aoc
type RecentlyClearedRouteType
properties
isRef 0
minOcc 1
maxOcc 10
content complex
children route noOfTimesUsed lastApprovedTime routeMetadataGroup
annotation
documentation
Route information with Route String, frequency of usage and last cleared time

complexType RecentlyClearedRouteRequestType
diagram FFSpec_p77.png
namespace http://www.jeppesen.com/aoc
children pod poa searchDays searchHours searchMins noOfRoutes routeMetadataCount includeAllFlights
used by
element FlightFollowingType/recentlyClearedRouteRequest
annotation
documentation
FF004 v1 Recently Cleared Route Request

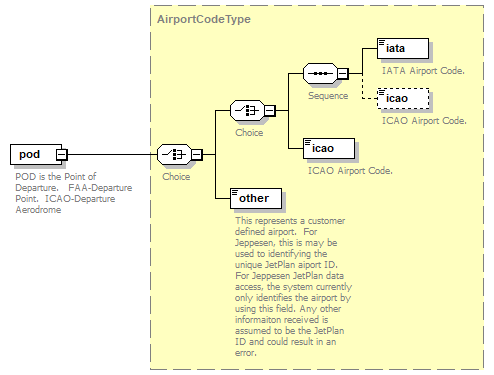

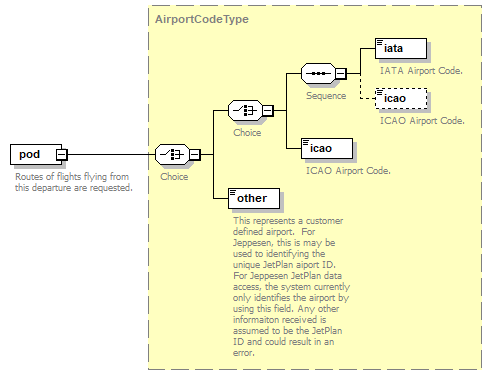

element RecentlyClearedRouteRequestType/pod
diagram FFSpec_p78.png
namespace http://www.jeppesen.com/aoc
type AirportCodeType
properties
isRef 0
content complex
children iata icao icao other
annotation
documentation
Routes of flights flying from this departure are requested.

element RecentlyClearedRouteRequestType/poa

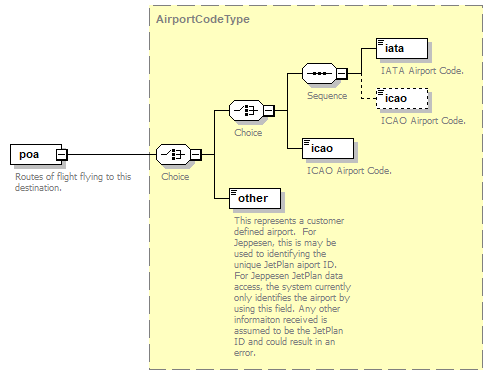

diagram FFSpec_p79.png
namespace http://www.jeppesen.com/aoc
type AirportCodeType
properties
isRef 0
content complex
children iata icao icao other
annotation
documentation
Routes of flight flying to this destination.

element RecentlyClearedRouteRequestType/searchDays
diagram FFSpec_p80.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minInclusive
maxInclusive 30
annotation
documentation
Number of days to factor when searching for routes

element RecentlyClearedRouteRequestType/searchHours
diagram FFSpec_p81.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minInclusive
maxInclusive 23
annotation
documentation
Number of hours to factor when searching for routes

element RecentlyClearedRouteRequestType/searchMins
diagram FFSpec_p82.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minInclusive
maxInclusive 59
annotation
documentation
Number of minutes to factor when searching for routes

element RecentlyClearedRouteRequestType/noOfRoutes
diagram FFSpec_p83.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minInclusive
maxInclusive 999
annotation
documentation
Number of routes to search

element RecentlyClearedRouteRequestType/routeMetadataCount
diagram FFSpec_p84.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minInclusive 1
maxInclusive 999
annotation
documentation
Number of metadata for each route. If ths element occurs, it must occur atleast once

element RecentlyClearedRouteRequestType/includeAllFlights
diagram FFSpec_p85.png
namespace http://www.jeppesen.com/aoc
type xs:boolean
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
To specify if all routes have to be considered or only departed flight routes

complexType RecentlyClearedRouteResponseType
diagram FFSpec_p86.png
namespace http://www.jeppesen.com/aoc
children pod poa searchDays searchHours searchMins noOfRoutes includeAllFlights routeMetadataCount recentlyClearedRouteGroup
used by
element FlightFollowingType/recentlyClearedRouteResponse
annotation
documentation
FF004 v1 Recently Cleared Route Response

element RecentlyClearedRouteResponseType/pod
diagram FFSpec_p87.png
namespace http://www.jeppesen.com/aoc
type AirportCodeType
properties
isRef 0
content complex
children iata icao icao other
annotation
documentation
Routes of flights flying from this departure were requested.

element RecentlyClearedRouteResponseType/poa
diagram FFSpec_p88.png
namespace http://www.jeppesen.com/aoc
type AirportCodeType
properties
isRef 0
content complex
children iata icao icao other
annotation
documentation
Routes of flight to this destination were requested.

element RecentlyClearedRouteResponseType/searchDays
diagram FFSpec_p89.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minInclusive
maxInclusive 30
annotation
documentation
Number of days to factor when searching for routes

element RecentlyClearedRouteResponseType/searchHours
diagram FFSpec_p90.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minInclusive
maxInclusive 23
annotation
documentation
Number of hours to factor when searching for routes

element RecentlyClearedRouteResponseType/searchMins
diagram FFSpec_p91.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minInclusive
maxInclusive 59
annotation
documentation
Number of minutes to factor when searching for routes

element RecentlyClearedRouteResponseType/noOfRoutes
diagram FFSpec_p92.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minInclusive
maxInclusive 999
annotation
documentation
Number of routes to search

element RecentlyClearedRouteResponseType/includeAllFlights
diagram FFSpec_p93.png
namespace http://www.jeppesen.com/aoc
type xs:boolean
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
To specify if all routes have to be considered or only departed flight routes

element RecentlyClearedRouteResponseType/routeMetadataCount
diagram FFSpec_p94.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minInclusive
maxInclusive 999
annotation
documentation
Number of metadata for each route. If ths element occurs, it must occur atleast once

element RecentlyClearedRouteResponseType/recentlyClearedRouteGroup
diagram FFSpec_p95.png
namespace http://www.jeppesen.com/aoc
type RecentlyClearedRouteGroupType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children recentlyClearedRoute
annotation
documentation
Element that groups all the routes that were found

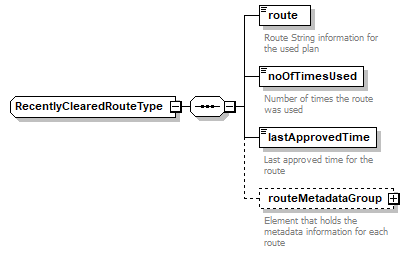

complexType RecentlyClearedRouteType
diagram FFSpec_p96.png
namespace http://www.jeppesen.com/aoc
children route noOfTimesUsed lastApprovedTime routeMetadataGroup
used by
element RecentlyClearedRouteGroupType/recentlyClearedRoute

element RecentlyClearedRouteType/route
diagram FFSpec_p97.png
namespace http://www.jeppesen.com/aoc
type String1000
properties
isRef 0
content simple
facets
Kind Value annotation
maxLength 1000
annotation
documentation
Route String information for the used plan

element RecentlyClearedRouteType/noOfTimesUsed
diagram FFSpec_p98.png
namespace http://www.jeppesen.com/aoc
type Integer0to9999
properties
isRef 0
content simple
facets
Kind Value annotation
minInclusive
maxInclusive 9999
annotation
documentation
Number of times the route was used

element RecentlyClearedRouteType/lastApprovedTime
diagram FFSpec_p99.png
namespace http://www.jeppesen.com/aoc
type xs:dateTime
properties
isRef 0
content simple
annotation
documentation
Last approved time for the route

element RecentlyClearedRouteType/routeMetadataGroup

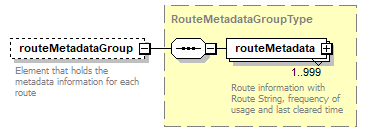

diagram FFSpec_p100.png
namespace http://www.jeppesen.com/aoc
type RouteMetadataGroupType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children routeMetadata
annotation
documentation
Element that holds the metadata information for each route

complexType RouteMetadataGroupType
diagram FFSpec_p101.png
namespace http://www.jeppesen.com/aoc
children routeMetadata
used by
element RecentlyClearedRouteType/routeMetadataGroup

element RouteMetadataGroupType/routeMetadata
diagram FFSpec_p102.png
namespace http://www.jeppesen.com/aoc
type RouteMetadataType
properties
isRef 0
minOcc 1
maxOcc 999
content complex
children ete equipment flightLevel issuedTime flightNumber speed registration etd
annotation
documentation
Route information with Route String, frequency of usage and last cleared time

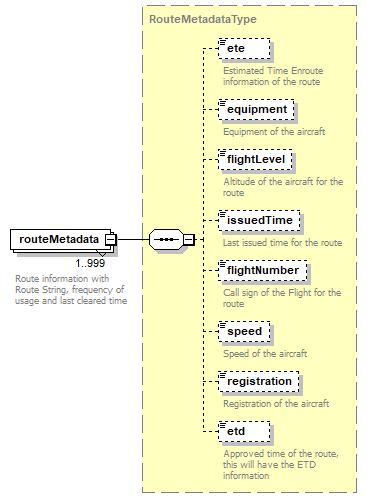

complexType RouteMetadataType

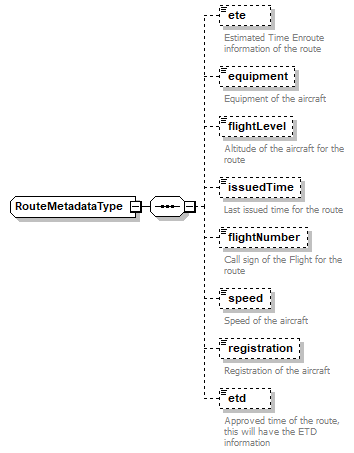

diagram FFSpec_p103.png
namespace http://www.jeppesen.com/aoc
children ete equipment flightLevel issuedTime flightNumber speed registration etd
used by
element RouteMetadataGroupType/routeMetadata

element RouteMetadataType/ete
diagram FFSpec_p104.png
namespace http://www.jeppesen.com/aoc
type String4to4
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength
maxLength
annotation
documentation
Estimated Time Enroute information of the route

element RouteMetadataType/equipment
diagram FFSpec_p105.png
namespace http://www.jeppesen.com/aoc
type String4to4
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength
maxLength
annotation
documentation
Equipment of the aircraft

element RouteMetadataType/flightLevel
diagram FFSpec_p106.png
namespace http://www.jeppesen.com/aoc
type String20
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
maxLength 20
annotation
documentation
Altitude of the aircraft for the route

element RouteMetadataType/issuedTime
diagram FFSpec_p107.png
namespace http://www.jeppesen.com/aoc
type xs:dateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
Last issued time for the route

element RouteMetadataType/flightNumber
diagram FFSpec_p108.png
namespace http://www.jeppesen.com/aoc
type String8
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
maxLength
annotation
documentation
Call sign of the Flight for the route

element RouteMetadataType/speed
diagram FFSpec_p109.png
namespace http://www.jeppesen.com/aoc
type String4
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
maxLength
annotation
documentation
Speed of the aircraft

element RouteMetadataType/registration
diagram FFSpec_p110.png
namespace http://www.jeppesen.com/aoc
type String8
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
maxLength
annotation
documentation
Registration of the aircraft

element RouteMetadataType/etd
diagram FFSpec_p111.png
namespace http://www.jeppesen.com/aoc
type xs:dateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
Approved time of the route, this will have the ETD information

complexType SuccessFlightInformationResponseType
diagram FFSpec_p112.png
namespace http://www.jeppesen.com/aoc
children successFlightInformationResponseGroup
used by
element FlightInformationResponseType/successFlightInformationResponse

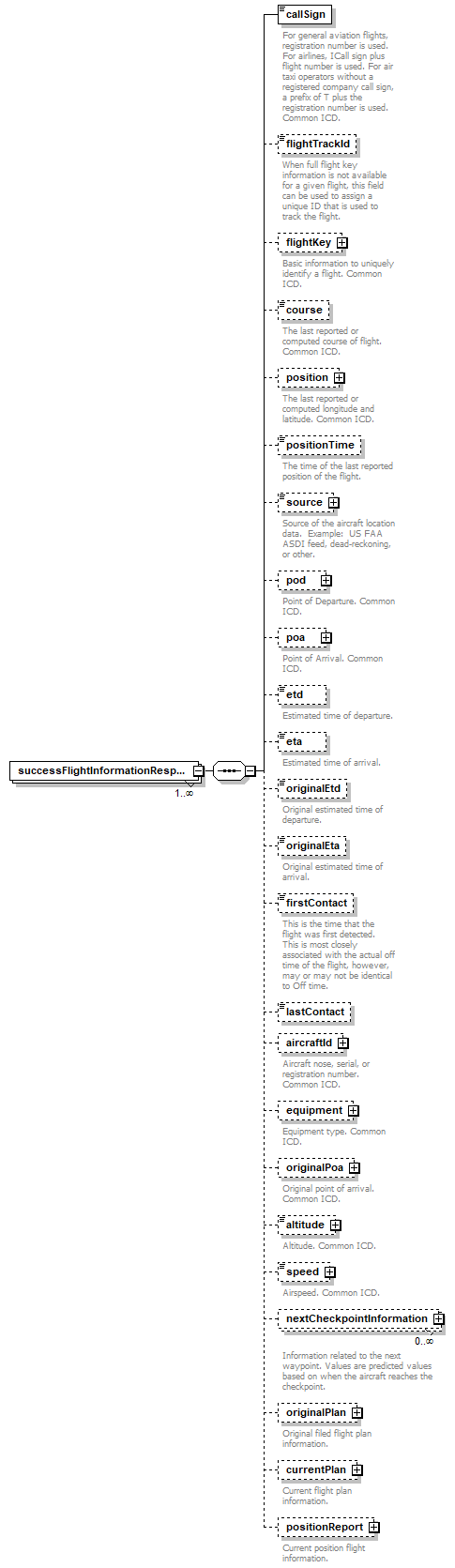

element SuccessFlightInformationResponseType/successFlightInformationResponseGroup
diagram FFSpec_p113.png
namespace http://www.jeppesen.com/aoc
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children callSign flightTrackId flightKey course position positionTime source pod poa etd eta originalEtd originalEta firstContact lastContact aircraftId equipment originalPoa altitude speed nextCheckpointInformation originalPlan currentPlan positionReport

element SuccessFlightInformationResponseType/successFlightInformationResponseGroup/callSign
diagram FFSpec_p114.png
namespace http://www.jeppesen.com/aoc
type CallSignType
properties
isRef 0
content simple
facets
Kind Value annotation
minLength
maxLength
annotation
documentation
For general aviation flights, registration number is used. For airlines, ICall sign plus flight number is used. For air taxi operators without a registered company call sign, a prefix of T plus the registration number is used. Common ICD.

element SuccessFlightInformationResponseType/successFlightInformationResponseGroup/flightTrackId
diagram FFSpec_p115.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
When full flight key information is not available for a given flight, this field can be used to assign a unique ID that is used to track the flight.

element SuccessFlightInformationResponseType/successFlightInformationResponseGroup/flightKey
diagram FFSpec_p116.png
namespace http://www.jeppesen.com/aoc
type FlightKeyType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children flightIdentifier pod
annotation
documentation
Basic information to uniquely identify a flight. Common ICD.

element SuccessFlightInformationResponseType/successFlightInformationResponseGroup/course
diagram FFSpec_p117.png
namespace http://www.jeppesen.com/aoc
type AzimuthType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minInclusive
maxInclusive 360
annotation
documentation
The last reported or computed course of flight. Common ICD.

element SuccessFlightInformationResponseType/successFlightInformationResponseGroup/position
diagram FFSpec_p118.png
namespace http://www.jeppesen.com/aoc
type GeographicPointType
properties
isRef 0
minOcc 0
maxOcc 1
content complex

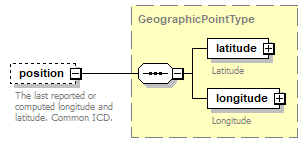

children latitude longitude
annotation
documentation
The last reported or computed longitude and latitude. Common ICD.

element SuccessFlightInformationResponseType/successFlightInformationResponseGroup/positionTime
diagram FFSpec_p119.png
namespace http://www.jeppesen.com/aoc
type xs:dateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
The time of the last reported position of the flight.

element SuccessFlightInformationResponseType/successFlightInformationResponseGroup/source
diagram FFSpec_p120.png
namespace http://www.jeppesen.com/aoc
type extension of xs:string
properties
isRef 0
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  annotation
priorityxs:positiveIntegerrequired
documentation
Indicates the priority assigned to the corresopnding data source. The Flight Following service uses this priority to retrieve position information when a request contains multiple data sources.
annotation
documentation
Source of the aircraft location data.  Example:  US FAA ASDI feed, dead-reckoning, or other.

attribute SuccessFlightInformationResponseType/successFlightInformationResponseGroup/source/@priority
type xs:positiveInteger
properties
isRef 0
use required
annotation
documentation
Indicates the priority assigned to the corresopnding data source. The Flight Following service uses this priority to retrieve position information when a request contains multiple data sources.

element SuccessFlightInformationResponseType/successFlightInformationResponseGroup/pod
diagram FFSpec_p121.png
namespace http://www.jeppesen.com/aoc
type AirportCodeType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children iata icao icao other
annotation
documentation

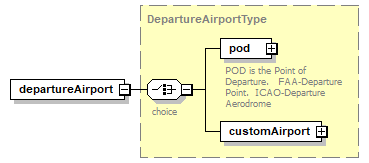

Point of Departure. Common ICD.

element SuccessFlightInformationResponseType/successFlightInformationResponseGroup/poa
diagram FFSpec_p122.png
namespace http://www.jeppesen.com/aoc
type AirportCodeType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children iata icao icao other
annotation
documentation
Point of Arrival. Common ICD.

element SuccessFlightInformationResponseType/successFlightInformationResponseGroup/etd

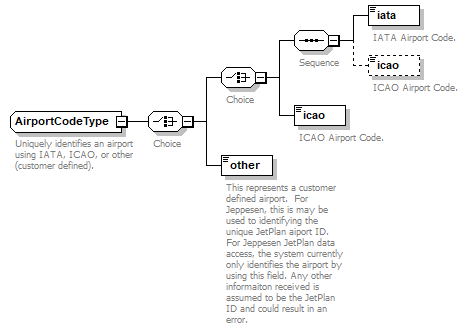

diagram FFSpec_p123.png
namespace http://www.jeppesen.com/aoc
type xs:dateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
Estimated time of departure.

element SuccessFlightInformationResponseType/successFlightInformationResponseGroup/eta
diagram FFSpec_p124.png
namespace http://www.jeppesen.com/aoc
type xs:dateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
Estimated time of arrival.

element SuccessFlightInformationResponseType/successFlightInformationResponseGroup/originalEtd
diagram FFSpec_p125.png
namespace http://www.jeppesen.com/aoc
type xs:dateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
Original estimated time of departure.

element SuccessFlightInformationResponseType/successFlightInformationResponseGroup/originalEta
diagram FFSpec_p126.png
namespace http://www.jeppesen.com/aoc
type xs:dateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
Original estimated time of arrival.

element SuccessFlightInformationResponseType/successFlightInformationResponseGroup/firstContact
diagram FFSpec_p127.png
namespace http://www.jeppesen.com/aoc
type xs:dateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
This is the time that the flight was first detected.  This is most closely associated with the actual off time of the flight, however, may or may not be identical to Off time.

element SuccessFlightInformationResponseType/successFlightInformationResponseGroup/lastContact
diagram FFSpec_p128.png
namespace http://www.jeppesen.com/aoc
type xs:dateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple

element SuccessFlightInformationResponseType/successFlightInformationResponseGroup/aircraftId

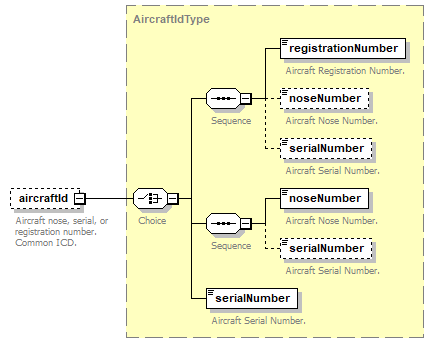

diagram FFSpec_p129.png
namespace http://www.jeppesen.com/aoc
type AircraftIdType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children registrationNumber noseNumber serialNumber noseNumber serialNumber serialNumber
annotation
documentation

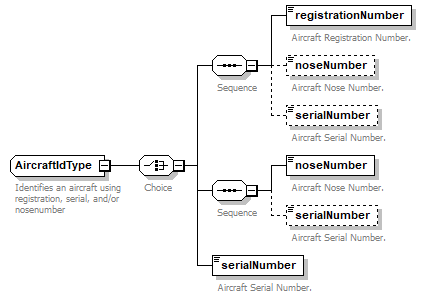

Aircraft nose, serial, or registration number. Common ICD.

element SuccessFlightInformationResponseType/successFlightInformationResponseGroup/equipment
diagram FFSpec_p130.png
namespace http://www.jeppesen.com/aoc
type EquipmentCodeType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children iata icao icao other
annotation
documentation
Equipment type. Common ICD.

element SuccessFlightInformationResponseType/successFlightInformationResponseGroup/originalPoa
diagram FFSpec_p131.png
namespace http://www.jeppesen.com/aoc
type AirportCodeType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children iata icao icao other
annotation
documentation
Original point of arrival. Common ICD.

element SuccessFlightInformationResponseType/successFlightInformationResponseGroup/altitude
diagram FFSpec_p132.png
namespace http://www.jeppesen.com/aoc
type AltitudeType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
facets
Kind Value annotation
minInclusive -2000
maxInclusive 250000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAltitudeHeightEnumTyperequired
documentation
ft = feet
m = meters
fl = flight level
mb = millibars
annotation
documentation
Altitude. Common ICD.

element SuccessFlightInformationResponseType/successFlightInformationResponseGroup/speed
diagram FFSpec_p133.png
namespace http://www.jeppesen.com/aoc
type AirspeedType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
facets
Kind Value annotation
minInclusive
maxInclusive 10000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAirspeedUnitsEnumTyperequired
documentation
kts - nautical miles per hour
kph - kilometers per hour
mph - statute miles per hour
mach - number times 100
annotation
documentation
Airspeed. Common ICD.

element SuccessFlightInformationResponseType/successFlightInformationResponseGroup/nextCheckpointInformation

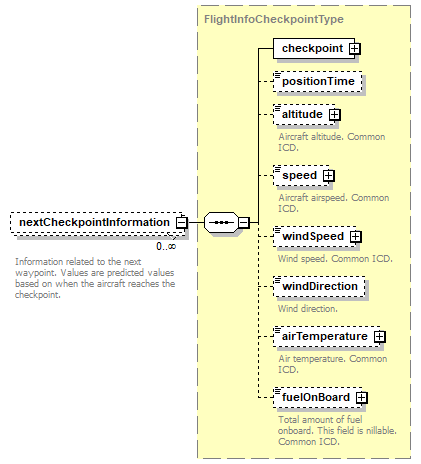

diagram FFSpec_p134.png
namespace http://www.jeppesen.com/aoc
type FlightInfoCheckpointType
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
children checkpoint positionTime altitude speed windSpeed windDirection airTemperature fuelOnBoard
annotation
documentation
Information related to the next waypoint. Values are predicted values based on when the aircraft reaches the checkpoint.

element SuccessFlightInformationResponseType/successFlightInformationResponseGroup/originalPlan

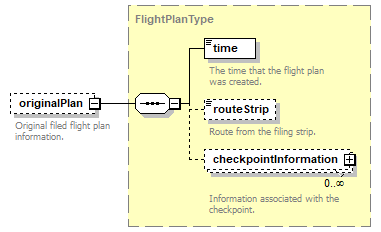

diagram FFSpec_p135.png
namespace http://www.jeppesen.com/aoc
type FlightPlanType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children time routeStrip checkpointInformation
annotation
documentation
Original filed flight plan information.

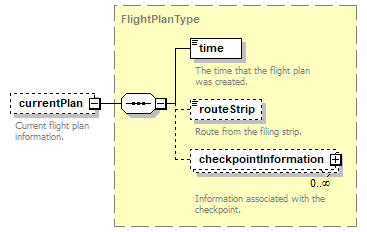

element SuccessFlightInformationResponseType/successFlightInformationResponseGroup/currentPlan
diagram FFSpec_p136.png
namespace http://www.jeppesen.com/aoc
type FlightPlanType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children time routeStrip checkpointInformation
annotation
documentation
Current flight plan information.

element SuccessFlightInformationResponseType/successFlightInformationResponseGroup/positionReport
diagram FFSpec_p137.png
namespace http://www.jeppesen.com/aoc
type PositionReportType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children positionReportGroup
annotation
documentation
Current position flight information.

complexType AccessType

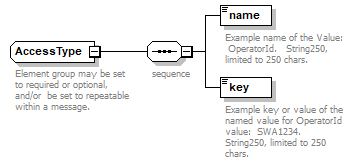

diagram FFSpec_p138.png
namespace http://www.jeppesen.com/aoc
children name key
used by
element FlightTrackingDataFeedType/access
annotation
documentation
Element group may be set to required or optional, and/or  be set to repeatable within a message.

element AccessType/name
diagram FFSpec_p139.png
namespace http://www.jeppesen.com/aoc
type String250
properties
isRef 0
content simple
facets
Kind Value annotation
maxLength 250
annotation
documentation
Example name of the Value:  OperatorId.   String250, limited to 250 chars.

element AccessType/key
diagram FFSpec_p140.png
namespace http://www.jeppesen.com/aoc
type String250
properties
isRef 0
content simple
facets
Kind Value annotation
maxLength 250
annotation
documentation
Example key or value of the named value for OperatorId value:  SWA1234.   String250, limited to 250 chars.

complexType AircraftIdentType

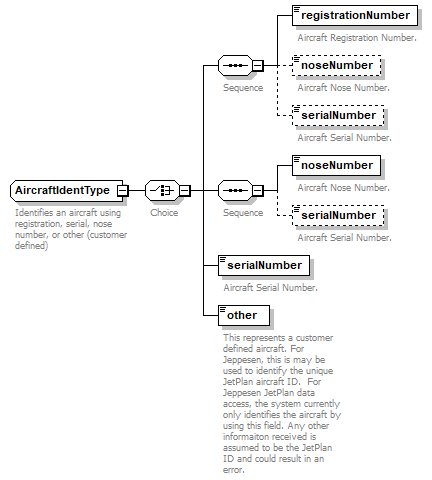

diagram FFSpec_p141.png
namespace http://www.jeppesen.com/aoc
children registrationNumber noseNumber serialNumber noseNumber serialNumber serialNumber other
used by
element DmiIdentifierType/aircraftId
annotation
documentation
Identifies an aircraft using registration, serial, nose number, or other (customer defined)

element AircraftIdentType/registrationNumber
diagram FFSpec_p142.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
isRef 0
content simple
facets
Kind Value annotation
minLength
maxLength
annotation
documentation
Aircraft Registration Number.

element AircraftIdentType/noseNumber
diagram FFSpec_p143.png
namespace http://www.jeppesen.com/aoc
type NoseNumberType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
pattern [A-Z\d]{1,12}
annotation
documentation
Aircraft Nose Number.

element AircraftIdentType/serialNumber
diagram FFSpec_p144.png
namespace http://www.jeppesen.com/aoc
type SerialNumberType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength
maxLength 25
annotation
documentation
Aircraft Serial Number.

element AircraftIdentType/noseNumber
diagram FFSpec_p145.png
namespace http://www.jeppesen.com/aoc
type NoseNumberType
properties
isRef 0
content simple
facets
Kind Value annotation
pattern [A-Z\d]{1,12}
annotation
documentation
Aircraft Nose Number.

element AircraftIdentType/serialNumber
diagram FFSpec_p146.png
namespace http://www.jeppesen.com/aoc
type SerialNumberType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength
maxLength 25
annotation
documentation
Aircraft Serial Number.

element AircraftIdentType/serialNumber
diagram FFSpec_p147.png
namespace http://www.jeppesen.com/aoc
type SerialNumberType
properties
isRef 0
content simple
facets
Kind Value annotation
minLength
maxLength 25
annotation
documentation
Aircraft Serial Number.

element AircraftIdentType/other
diagram FFSpec_p148.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
isRef 0
content simple
facets
Kind Value annotation
minLength
maxLength 25
annotation
documentation
This represents a customer defined aircraft. For Jeppesen, this is may be used to identify the unique JetPlan aircraft ID.  For Jeppesen JetPlan data access, the system currently only identifies the aircraft by using this field. Any other informaiton received is assumed to be the JetPlan ID and could result in an error.

complexType AircraftIdType
diagram FFSpec_p149.png
namespace http://www.jeppesen.com/aoc
children registrationNumber noseNumber serialNumber noseNumber serialNumber serialNumber
used by
elements SuccessFlightInformationResponseType/successFlightInformationResponseGroup/aircraftId BagaFlightKeyType/aircraftId FpResponseAircraftType/aircraftId
annotation
documentation
Identifies an aircraft using registration, serial, and/or nosenumber

element AircraftIdType/registrationNumber
diagram FFSpec_p150.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
isRef 0
content simple
facets
Kind Value annotation
minLength
maxLength
annotation
documentation
Aircraft Registration Number.

element AircraftIdType/noseNumber
diagram FFSpec_p151.png
namespace http://www.jeppesen.com/aoc
type NoseNumberType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
pattern [A-Z\d]{1,12}
annotation
documentation
Aircraft Nose Number.

element AircraftIdType/serialNumber
diagram FFSpec_p152.png
namespace http://www.jeppesen.com/aoc
type SerialNumberType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength
maxLength 25
annotation
documentation
Aircraft Serial Number.

element AircraftIdType/noseNumber
diagram FFSpec_p153.png
namespace http://www.jeppesen.com/aoc
type NoseNumberType
properties
isRef 0
content simple
facets
Kind Value annotation
pattern [A-Z\d]{1,12}
annotation
documentation
Aircraft Nose Number.

element AircraftIdType/serialNumber
diagram FFSpec_p154.png
namespace http://www.jeppesen.com/aoc
type SerialNumberType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength
maxLength 25
annotation
documentation
Aircraft Serial Number.

element AircraftIdType/serialNumber
diagram FFSpec_p155.png
namespace http://www.jeppesen.com/aoc
type SerialNumberType
properties
isRef 0
content simple
facets
Kind Value annotation
minLength
maxLength 25
annotation
documentation
Aircraft Serial Number.

complexType AirlineCodeType

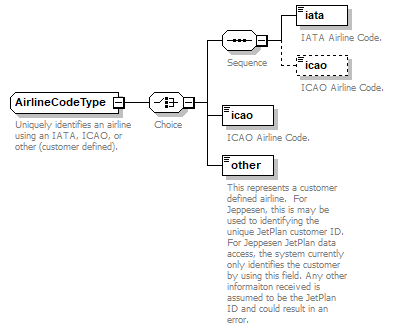

diagram FFSpec_p156.png
namespace http://www.jeppesen.com/aoc
children iata icao icao other
used by
elements FlightIdentifierType/airlineCode RouteKeyType/airlineCode
annotation
documentation
Uniquely identifies an airline using an IATA, ICAO, or other (customer defined).

element AirlineCodeType/iata
diagram FFSpec_p157.png
namespace http://www.jeppesen.com/aoc
type IataAirlineType
properties
isRef 0
content simple
facets
Kind Value annotation
pattern [0-9A-Z]{2}
annotation
documentation
IATA Airline Code.

element AirlineCodeType/icao
diagram FFSpec_p158.png
namespace http://www.jeppesen.com/aoc
type IcaoAirlineType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
pattern [0-9A-Z]{3}
annotation
documentation
ICAO Airline Code.

element AirlineCodeType/icao
diagram FFSpec_p159.png
namespace http://www.jeppesen.com/aoc
type IcaoAirlineType
properties
isRef 0
content simple
facets
Kind Value annotation
pattern [0-9A-Z]{3}
annotation
documentation
ICAO Airline Code.

element AirlineCodeType/other
diagram FFSpec_p160.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
isRef 0
content simple
facets
Kind Value annotation
pattern [0-9A-Z]{1,4}
annotation
documentation
This represents a customer defined airline.  For Jeppesen, this is may be used to identifying the unique JetPlan customer ID.  For Jeppesen JetPlan data access, the system currently only identifies the customer by using this field. Any other informaiton received is assumed to be the JetPlan ID and could result in an error.

complexType AirportCodeType
diagram FFSpec_p161.png
namespace http://www.jeppesen.com/aoc
children iata icao icao other
used by
elements FpResponseAirportType/airport FpResponseAlternateAirportType/alternateLandingAirportGroup/airport FpResponseEtpAirportType/airport InFlightRerouteType/newArrivalAlternate InFlightRerouteType/newEnrouteAlternate InFlightRerouteType/newPoa SuccessFlightInformationResponseType/successFlightInformationResponseGroup/originalPoa RecentlyClearedRouteRequestType/poa RecentlyClearedRouteResponseType/poa FlightInformationPointGroupType/poa SuccessFlightInformationResponseType/successFlightInformationResponseGroup/poa ArrivalAirportType/poa RouteKeyType/poa RecentlyClearedRouteRequestType/pod RecentlyClearedRouteResponseType/pod FlightInformationPointGroupType/pod SuccessFlightInformationResponseType/successFlightInformationResponseGroup/pod BagaFlightKeyType/pod DepartureAirportType/pod FlightKeyType/pod RouteKeyType/pod
annotation
documentation
Uniquely identifies an airport using IATA, ICAO, or other (customer defined).

element AirportCodeType/iata
diagram FFSpec_p162.png
namespace http://www.jeppesen.com/aoc
type IataAirportType
properties
isRef 0
content simple
facets
Kind Value annotation
pattern [0-9A-Z]{3}
annotation
documentation
IATA Airport Code.

element AirportCodeType/icao
diagram FFSpec_p163.png
namespace http://www.jeppesen.com/aoc
type IcaoAirportType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
pattern [0-9A-Z]{4}
annotation
documentation
ICAO Airport Code.

element AirportCodeType/icao
diagram FFSpec_p164.png
namespace http://www.jeppesen.com/aoc
type IcaoAirportType
properties
isRef 0
content simple
facets
Kind Value annotation
pattern [0-9A-Z]{4}
annotation
documentation
ICAO Airport Code.

element AirportCodeType/other
diagram FFSpec_p165.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
isRef 0
content simple
facets
Kind Value annotation
pattern [0-9A-Z]{1,4}
annotation
documentation
This represents a customer defined airport.  For Jeppesen, this is may be used to identifying the unique JetPlan aiport ID.  For Jeppesen JetPlan data access, the system currently only identifies the airport by using this field. Any other informaiton received is assumed to be the JetPlan ID and could result in an error.

complexType AirspeedType
diagram FFSpec_p166.png
namespace http://www.jeppesen.com/aoc
type extension of AirspeedRestriction
properties
base AirspeedRestriction
used by
elements FpResponseCheckpointType/groundSpeed FpResponseSegmentType/groundSpeed FpResponseTocTodType/groundSpeed FpResponseSegmentType/mach FlightInfoCheckpointType/speed SuccessFlightInformationResponseType/successFlightInformationResponseGroup/speed FpResponseCheckpointType/trueAirspeed FpResponseSegmentType/trueAirspeed FpResponseTocTodType/trueAirspeed WindGradientType/windVelocity
facets
Kind Value annotation
minInclusive
maxInclusive 10000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAirspeedUnitsEnumTyperequired
documentation
kts - nautical miles per hour
kph - kilometers per hour
mph - statute miles per hour
mach - number times 100

attribute AirspeedType/@units
type AirspeedUnitsEnumType
properties
isRef 0
use required
facets
Kind Value annotation
enumeration kts
enumeration kph
enumeration mph
enumeration mach
annotation
documentation
kts - nautical miles per hour
kph - kilometers per hour
mph - statute miles per hour
mach - number times 100

complexType AltitudeCruiseModeGroupType
diagram FFSpec_p167.png
namespace http://www.jeppesen.com/aoc
children speed altitude
used by
element AltitudeCruiseModeType/altitudeCruiseModeGroup

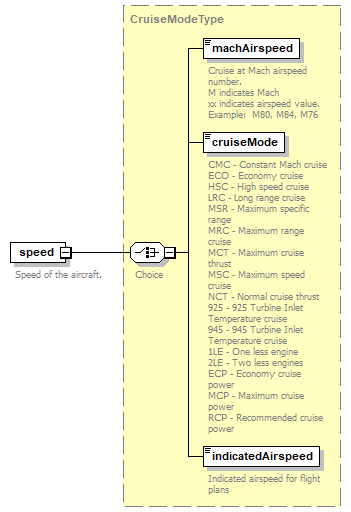

element AltitudeCruiseModeGroupType/speed
diagram FFSpec_p168.png
namespace http://www.jeppesen.com/aoc
type CruiseModeType
properties
isRef 0
content complex
children machAirspeed cruiseMode indicatedAirspeed
annotation
documentation
Speed of the aircraft.

element AltitudeCruiseModeGroupType/altitude
diagram FFSpec_p169.png
namespace http://www.jeppesen.com/aoc
type AltitudeType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive -2000
maxInclusive 250000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAltitudeHeightEnumTyperequired
documentation
ft = feet
m = meters
fl = flight level
mb = millibars
annotation
documentation
Altitude of the aircraft.

complexType AltitudeCruiseModeType
diagram FFSpec_p170.png
namespace http://www.jeppesen.com/aoc
children altitudeCruiseModeGroup

element AltitudeCruiseModeType/altitudeCruiseModeGroup

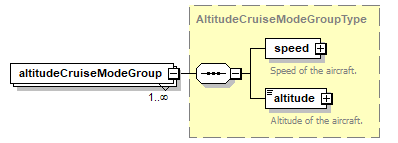

diagram FFSpec_p171.png
namespace http://www.jeppesen.com/aoc
type AltitudeCruiseModeGroupType
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children speed altitude

complexType AltitudeMinMaxType
diagram FFSpec_p172.png
namespace http://www.jeppesen.com/aoc
children min max

element AltitudeMinMaxType/min
diagram FFSpec_p173.png
namespace http://www.jeppesen.com/aoc
type AltitudeType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive -2000
maxInclusive 250000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAltitudeHeightEnumTyperequired
documentation
ft = feet
m = meters
fl = flight level
mb = millibars

element AltitudeMinMaxType/max
diagram FFSpec_p174.png
namespace http://www.jeppesen.com/aoc
type AltitudeType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive -2000
maxInclusive 250000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAltitudeHeightEnumTyperequired
documentation
ft = feet
m = meters
fl = flight level
mb = millibars

complexType AltitudeType
diagram FFSpec_p175.png
namespace http://www.jeppesen.com/aoc
type extension of AltitudeRangeRestriction
properties
base AltitudeRangeRestriction
used by
elements InFlightRerouteType/altitude FlightInfoCheckpointType/altitude NewCheckpointType/altitude SuccessFlightInformationResponseType/successFlightInformationResponseGroup/altitude AltitudeCruiseModeGroupType/altitude FpRequestAltitudeType/altitudeGroup/altitude FpResponseCheckpointType/altitude FpResponseTocTodType/altitude FuelDurationType/altitude HorizontalCoordinateType/altitude FpResponseFlightType/flightLevel FpResponseFlightLevelType/fpResponseFlightLevelGroup/flightLevel AltitudeMinMaxType/max AltitudeMinMaxType/min
facets
Kind Value annotation
minInclusive -2000
maxInclusive 250000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAltitudeHeightEnumTyperequired
documentation
ft = feet
m = meters
fl = flight level
mb = millibars

attribute AltitudeType/@units
type AltitudeHeightEnumType
properties
isRef 0
use required
facets
Kind Value annotation
enumeration ft
enumeration
enumeration fl
enumeration mb
annotation
documentation
ft = feet
m = meters
fl = flight level
mb = millibars

complexType ArrivalAirportType
diagram FFSpec_p176.png
namespace http://www.jeppesen.com/aoc
children poa customAirport

element ArrivalAirportType/poa
diagram FFSpec_p177.png
namespace http://www.jeppesen.com/aoc
type AirportCodeType
properties
isRef 0
content complex
children iata icao icao other

element ArrivalAirportType/customAirport
diagram FFSpec_p178.png
namespace http://www.jeppesen.com/aoc
type CustomAirportType
properties
isRef 0
content complex
children customAirportId coordinates

complexType AtmosphericPressureType

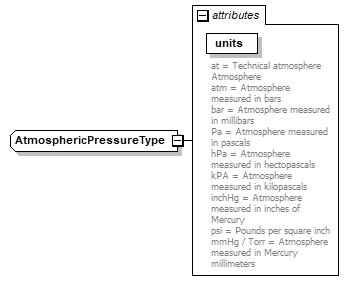

diagram FFSpec_p179.png
namespace http://www.jeppesen.com/aoc
type extension of xs:double
properties
base xs:double
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAtmosphericUnitTyperequired
documentation
at = Technical atmosphere
Atmosphere
atm = Atmosphere measured in bars
bar = Atmosphere measured in millibars
Pa = Atmosphere measured in pascals
hPa = Atmosphere measured in hectopascals
kPA = Atmosphere measured in kilopascals
inchHg = Atmosphere measured in inches of Mercury
psi = Pounds per square inch
mmHg / Torr = Atmosphere measured in Mercury millimeters

attribute AtmosphericPressureType/@units
type AtmosphericUnitType
properties
isRef 0
use required
facets
Kind Value annotation
enumeration at
enumeration atm
enumeration bar
enumeration mbar
enumeration Pa
enumeration hPa
enumeration kPa
enumeration inchHg
enumeration psi
enumeration mmHg
enumeration Torr
annotation
documentation
at = Technical atmosphere
Atmosphere
atm = Atmosphere measured in bars
bar = Atmosphere measured in millibars
Pa = Atmosphere measured in pascals
hPa = Atmosphere measured in hectopascals
kPA = Atmosphere measured in kilopascals
inchHg = Atmosphere measured in inches of Mercury
psi = Pounds per square inch
mmHg / Torr = Atmosphere measured in Mercury millimeters

complexType BagaFlightKeyType

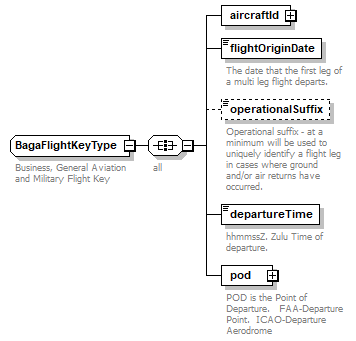

diagram FFSpec_p180.png
namespace http://www.jeppesen.com/aoc
children aircraftId flightOriginDate operationalSuffix departureTime pod
used by
element FlightKeyChoiceType/bagaFlightKey
annotation
documentation
Business, General Aviation  and Military Flight Key

element BagaFlightKeyType/aircraftId

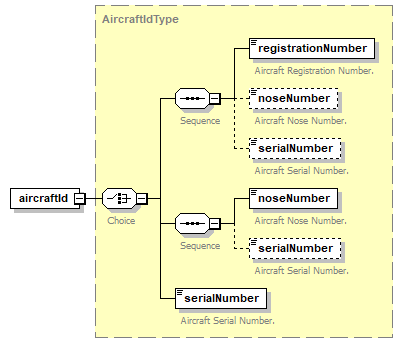

diagram FFSpec_p181.png
namespace http://www.jeppesen.com/aoc
type AircraftIdType
properties
isRef 0
content complex
children registrationNumber noseNumber serialNumber noseNumber serialNumber serialNumber

element BagaFlightKeyType/flightOriginDate
diagram FFSpec_p182.png
namespace http://www.jeppesen.com/aoc
type xs:date
properties
isRef 0
content simple
annotation
documentation
The date that the first leg of a multi leg flight departs.

element BagaFlightKeyType/operationalSuffix
diagram FFSpec_p183.png
namespace http://www.jeppesen.com/aoc
type String1
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
maxLength
annotation
documentation
Operational suffix - at a minimum will be used to uniquely identify a flight leg in cases where ground and/or air returns have occurred.

element BagaFlightKeyType/departureTime
diagram FFSpec_p184.png
namespace http://www.jeppesen.com/aoc
type xs:time
properties
isRef 0
content simple
annotation
documentation
hhmmssZ. Zulu Time of departure.

element BagaFlightKeyType/pod
diagram FFSpec_p185.png
namespace http://www.jeppesen.com/aoc
type AirportCodeType
properties
isRef 0
content complex
children iata icao icao other
annotation
documentation
POD is the Point of Departure.   FAA-Departure Point.  ICAO-Departure Aerodrome

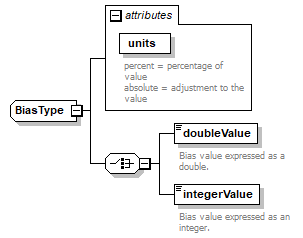

complexType BiasType
diagram FFSpec_p186.png
namespace http://www.jeppesen.com/aoc
children doubleValue integerValue
attributes
Name  Type  Use  Default  Fixed  annotation
unitsBiasEnumTyperequired
documentation
percent = percentage of value
absolute = adjustment to the value

attribute BiasType/@units
type BiasEnumType
properties
isRef 0
use required
facets
Kind Value annotation
enumeration percent
enumeration absolute
annotation
documentation
percent = percentage of value
absolute = adjustment to the value

element BiasType/doubleValue
diagram FFSpec_p187.png
namespace http://www.jeppesen.com/aoc
type xs:double
properties
isRef 0
content simple
annotation
documentation
Bias value expressed as a double.

element BiasType/integerValue
diagram FFSpec_p188.png
namespace http://www.jeppesen.com/aoc
type xs:integer
properties
isRef 0
content simple
annotation
documentation
Bias value expressed as an integer.

complexType BoundingAreaCircleType
diagram FFSpec_p189.png
namespace http://www.jeppesen.com/aoc
children point radius
used by
element BoundingAreaType/circle

element BoundingAreaCircleType/point

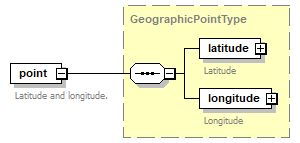

diagram FFSpec_p190.png
namespace http://www.jeppesen.com/aoc
type GeographicPointType
properties
isRef 0
content complex
children latitude longitude
annotation
documentation
Latitude and longitude.

element BoundingAreaCircleType/radius
diagram FFSpec_p191.png
namespace http://www.jeppesen.com/aoc
type DistanceType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive 0.0
maxInclusive 50000.0
attributes
Name  Type  Use  Default  Fixed  annotation
unitsBasicDistanceEnumTyperequired
documentation
nm = nautical miles
km = kilometers
ft = feet
m = meters
annotation
documentation
Distance of the radius.

complexType BoundingAreaPolygonType
diagram FFSpec_p192.png
namespace http://www.jeppesen.com/aoc
children point
used by
element BoundingAreaType/polygon

element BoundingAreaPolygonType/point
diagram FFSpec_p193.png
namespace http://www.jeppesen.com/aoc
type GeographicPointType
properties
isRef 0
minOcc 2
maxOcc unbounded
content complex
children latitude longitude
annotation
documentation
Latitude and longitude.

complexType BoundingAreaType

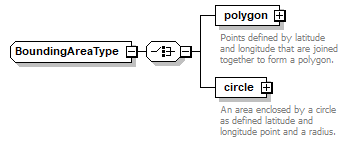

diagram FFSpec_p194.png
namespace http://www.jeppesen.com/aoc
children polygon circle
used by
element FlightInformationRequestType/area

element BoundingAreaType/polygon

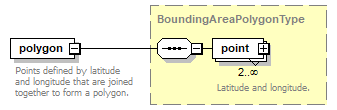

diagram FFSpec_p195.png
namespace http://www.jeppesen.com/aoc
type BoundingAreaPolygonType
properties
isRef 0
content complex
children point
annotation
documentation
Points defined by latitude and longitude that are joined together to form a polygon.

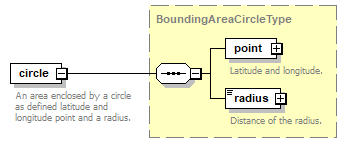

element BoundingAreaType/circle
diagram FFSpec_p196.png
namespace http://www.jeppesen.com/aoc
type BoundingAreaCircleType
properties
isRef 0
content complex
children point radius
annotation
documentation
An area enclosed by a circle as defined latitude and longitude point and a radius.

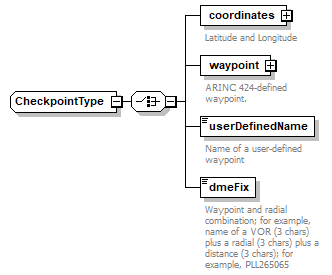

complexType CheckpointType
diagram FFSpec_p197.png
namespace http://www.jeppesen.com/aoc
children coordinates waypoint userDefinedName dmeFix
used by
elements NewCheckpointType/checkpoint FpResponseFlightLevelType/fpResponseFlightLevelGroup/checkpoint InFlightRerouteType/location FpResponseCheckpointType/name FpResponseEtpType/etp/name

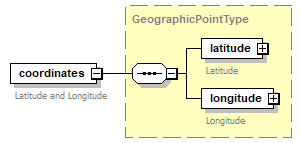

element CheckpointType/coordinates
diagram FFSpec_p198.png
namespace http://www.jeppesen.com/aoc
type GeographicPointType
properties
isRef 0
content complex
children latitude longitude
annotation
documentation
Latitude and Longitude

element CheckpointType/waypoint
diagram FFSpec_p199.png
namespace http://www.jeppesen.com/aoc
type WaypointType
properties
isRef 0
content complex
children identifier icaoCode type
annotation
documentation
ARINC 424-defined waypoint.

element CheckpointType/userDefinedName
diagram FFSpec_p200.png
namespace http://www.jeppesen.com/aoc
type String12
properties
isRef 0
content simple
facets
Kind Value annotation
maxLength 12
annotation
documentation
Name of a user-defined waypoint

element CheckpointType/dmeFix
diagram FFSpec_p201.png
namespace http://www.jeppesen.com/aoc
type String9
properties
isRef 0
content simple
facets
Kind Value annotation
maxLength
annotation
documentation
Waypoint and radial combination; for example, name of a VOR (3 chars) plus a radial (3 chars) plus a distance (3 chars); for example, PLL265065

complexType ClassNameType
diagram FFSpec_p202.png
namespace http://www.jeppesen.com/aoc
children propertyClass propertyName

element ClassNameType/propertyClass
diagram FFSpec_p203.png
namespace http://www.jeppesen.com/aoc
type String255
properties
isRef 0
content simple
facets
Kind Value annotation
maxLength 255

element ClassNameType/propertyName
diagram FFSpec_p204.png
namespace http://www.jeppesen.com/aoc
type String255
properties
isRef 0
content simple
facets
Kind Value annotation
maxLength 255

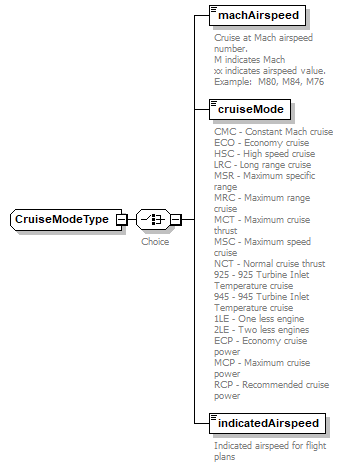

complexType CruiseModeType
diagram FFSpec_p205.png
namespace http://www.jeppesen.com/aoc
children machAirspeed cruiseMode indicatedAirspeed
used by
elements NewCheckpointType/cruiseMode FpRequestSpeedScheduleType/primaryCruiseMode AltitudeCruiseModeGroupType/speed

element CruiseModeType/machAirspeed
diagram FFSpec_p206.png
namespace http://www.jeppesen.com/aoc
type MachAirspeedRestriction
properties
isRef 0
content simple
facets
Kind Value annotation
pattern M[6-9][0-9]
annotation
documentation
Cruise at Mach airspeed number.
M indicates Mach
xx indicates airspeed value.  Example:  M80, M84, M76

element CruiseModeType/cruiseMode

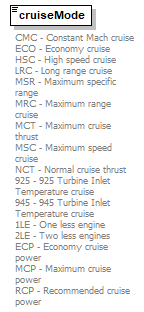

diagram FFSpec_p207.png
namespace http://www.jeppesen.com/aoc
type CruiseModeEnumType
properties
isRef 0
content simple
facets
Kind Value annotation
length
whiteSpace collapse
enumeration CMC
enumeration ECO
enumeration HSC
enumeration LRC
enumeration MSR
enumeration MRC
enumeration MCT
enumeration MSC
enumeration NCT
enumeration 925
enumeration 945
enumeration 1LE
enumeration 2LE
enumeration ECP
enumeration MCP
enumeration RCP
annotation
documentation
CMC - Constant Mach cruise
ECO - Economy cruise
HSC - High speed cruise
LRC - Long range cruise
MSR - Maximum specific range
MRC - Maximum range cruise
MCT - Maximum cruise thrust
MSC - Maximum speed cruise
NCT - Normal cruise thrust
925 - 925 Turbine Inlet Temperature cruise
945 - 945 Turbine Inlet Temperature cruise
1LE - One less engine
2LE - Two less engines
ECP - Economy cruise power
MCP - Maximum cruise power
RCP - Recommended cruise power

element CruiseModeType/indicatedAirspeed
diagram FFSpec_p208.png
namespace http://www.jeppesen.com/aoc
type IndicatedAirspeedRestriction
properties
isRef 0
content simple
facets
Kind Value annotation
minInclusive 100
maxInclusive 400
annotation
documentation
Indicated airspeed for flight plans

complexType CustomAirportType
diagram FFSpec_p209.png
namespace http://www.jeppesen.com/aoc
children customAirportId coordinates
used by
elements ArrivalAirportType/customAirport DepartureAirportType/customAirport

element CustomAirportType/customAirportId
diagram FFSpec_p210.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple

element CustomAirportType/coordinates
diagram FFSpec_p211.png
namespace http://www.jeppesen.com/aoc
type GeographicPointType
properties
isRef 0
content complex
children latitude longitude

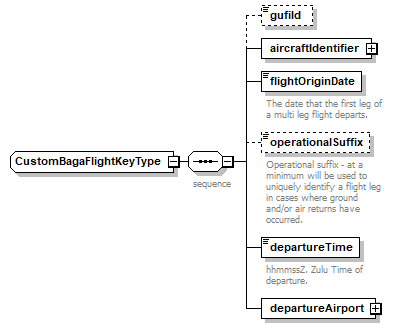

complexType CustomBagaFlightKeyType
diagram FFSpec_p212.png
namespace http://www.jeppesen.com/aoc
children gufiId aircraftIdentifier flightOriginDate operationalSuffix departureTime departureAirport
used by
element CustomFlightKeyChoiceType/customBagaFlightKey

element CustomBagaFlightKeyType/gufiId
diagram FFSpec_p213.png
namespace http://www.jeppesen.com/aoc
type GufiId
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength
maxLength 36

element CustomBagaFlightKeyType/aircraftIdentifier

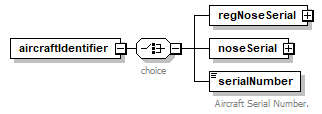

diagram FFSpec_p214.png
namespace http://www.jeppesen.com/aoc
properties
isRef 0
content complex
children regNoseSerial noseSerial serialNumber

element CustomBagaFlightKeyType/aircraftIdentifier/regNoseSerial

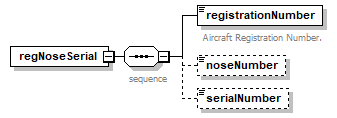

diagram FFSpec_p215.png
namespace http://www.jeppesen.com/aoc
properties
isRef 0
content complex
children registrationNumber noseNumber serialNumber

element CustomBagaFlightKeyType/aircraftIdentifier/regNoseSerial/registrationNumber
diagram FFSpec_p216.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
isRef 0
content simple
facets
Kind Value annotation
minLength
maxLength
annotation
documentation
Aircraft Registration Number.

element CustomBagaFlightKeyType/aircraftIdentifier/regNoseSerial/noseNumber
diagram FFSpec_p217.png
namespace http://www.jeppesen.com/aoc
type NoseNumberType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
pattern [A-Z\d]{1,12}

element CustomBagaFlightKeyType/aircraftIdentifier/regNoseSerial/serialNumber
diagram FFSpec_p218.png
namespace http://www.jeppesen.com/aoc
type SerialNumberType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength
maxLength 25

element CustomBagaFlightKeyType/aircraftIdentifier/noseSerial
diagram FFSpec_p219.png
namespace http://www.jeppesen.com/aoc
properties
isRef 0
content complex
children noseNumber serialNumber

element CustomBagaFlightKeyType/aircraftIdentifier/noseSerial/noseNumber
diagram FFSpec_p220.png
namespace http://www.jeppesen.com/aoc
type NoseNumberType
properties
isRef 0
content simple
facets
Kind Value annotation
pattern [A-Z\d]{1,12}

element CustomBagaFlightKeyType/aircraftIdentifier/noseSerial/serialNumber
diagram FFSpec_p221.png
namespace http://www.jeppesen.com/aoc
type SerialNumberType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength
maxLength 25
annotation
documentation
Aircraft Serial Number.

element CustomBagaFlightKeyType/aircraftIdentifier/serialNumber
diagram FFSpec_p222.png
namespace http://www.jeppesen.com/aoc
type SerialNumberType
properties
isRef 0
content simple
facets
Kind Value annotation
minLength
maxLength 25
annotation
documentation
Aircraft Serial Number.

element CustomBagaFlightKeyType/flightOriginDate
diagram FFSpec_p223.png
namespace http://www.jeppesen.com/aoc
type xs:date
properties
isRef 0
content simple
annotation
documentation
The date that the first leg of a multi leg flight departs.

element CustomBagaFlightKeyType/operationalSuffix
diagram FFSpec_p224.png
namespace http://www.jeppesen.com/aoc
type String1
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
maxLength
annotation
documentation
Operational suffix - at a minimum will be used to uniquely identify a flight leg in cases where ground and/or air returns have occurred.

element CustomBagaFlightKeyType/departureTime
diagram FFSpec_p225.png
namespace http://www.jeppesen.com/aoc
type xs:time
properties
isRef 0
content simple
annotation
documentation
hhmmssZ. Zulu Time of departure.

element CustomBagaFlightKeyType/departureAirport
diagram FFSpec_p226.png
namespace http://www.jeppesen.com/aoc
type DepartureAirportType
properties
isRef 0
content complex
children pod customAirport

complexType CustomCommercialFlightKeyType

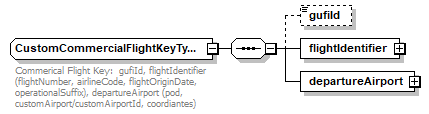

diagram FFSpec_p227.png
namespace http://www.jeppesen.com/aoc
children gufiId flightIdentifier departureAirport
used by
element CustomFlightKeyChoiceType/customCommercialFlightKey
annotation
documentation
Commerical Flight Key:  gufiId, flightIdentifier (flightNumber, airlineCode, flightOriginDate, operationalSuffix), departureAirport (pod, customAirport/customAirportId, coordiantes)

element CustomCommercialFlightKeyType/gufiId
diagram FFSpec_p228.png
namespace http://www.jeppesen.com/aoc
type GufiId
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength
maxLength 36

element CustomCommercialFlightKeyType/flightIdentifier

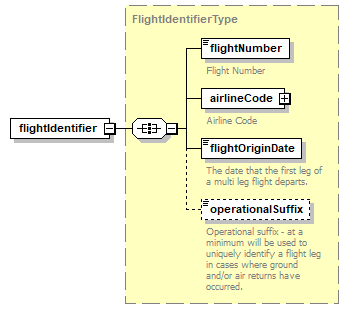

diagram FFSpec_p229.png
namespace http://www.jeppesen.com/aoc
type FlightIdentifierType
properties
isRef 0
content complex
children flightNumber airlineCode flightOriginDate operationalSuffix

element CustomCommercialFlightKeyType/departureAirport
diagram FFSpec_p230.png
namespace http://www.jeppesen.com/aoc
type DepartureAirportType
properties
isRef 0
content complex
children pod customAirport

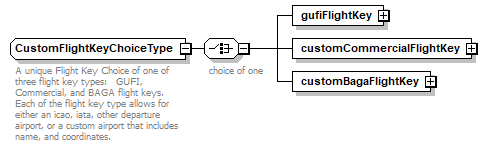

complexType CustomFlightKeyChoiceType
diagram FFSpec_p231.png
namespace http://www.jeppesen.com/aoc
children gufiFlightKey customCommercialFlightKey customBagaFlightKey
annotation
documentation
A unique Flight Key Choice of one of three flight key types:   GUFI, Commercial, and BAGA flight keys.    Each of the flight key type allows for either an icao, iata, other departure airport, or a custom airport that includes name, and coordinates.

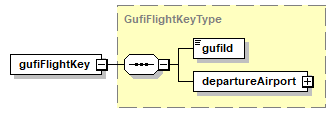

element CustomFlightKeyChoiceType/gufiFlightKey
diagram FFSpec_p232.png
namespace http://www.jeppesen.com/aoc
type GufiFlightKeyType
properties
isRef 0
content complex
children gufiId departureAirport

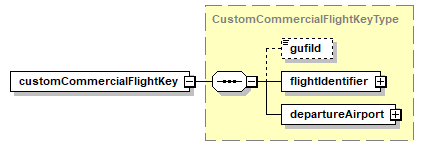

element CustomFlightKeyChoiceType/customCommercialFlightKey
diagram FFSpec_p233.png
namespace http://www.jeppesen.com/aoc
type CustomCommercialFlightKeyType
properties
isRef 0
content complex
children gufiId flightIdentifier departureAirport

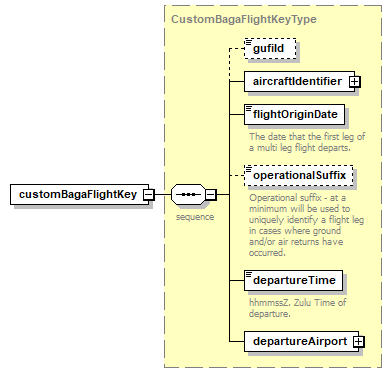

element CustomFlightKeyChoiceType/customBagaFlightKey
diagram FFSpec_p234.png
namespace http://www.jeppesen.com/aoc
type CustomBagaFlightKeyType
properties
isRef 0
content complex
children gufiId aircraftIdentifier flightOriginDate operationalSuffix departureTime departureAirport

complexType DelayCodeType

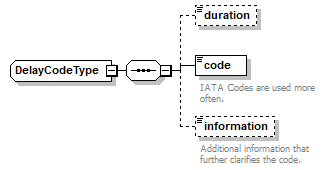

diagram FFSpec_p235.png
namespace http://www.jeppesen.com/aoc
children duration code information

element DelayCodeType/duration
diagram FFSpec_p236.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:duration
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation

element DelayCodeType/code
diagram FFSpec_p237.png
namespace http://www.jeppesen.com/aoc
type String4
properties
isRef 0
content simple
facets
Kind Value annotation
maxLength
annotation
documentation
IATA Codes are used more often.

element DelayCodeType/information
diagram FFSpec_p238.png
namespace http://www.jeppesen.com/aoc
type String1000
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
maxLength 1000
annotation
documentation
Additional information that further clarifies the code.

complexType DepartureAirportType

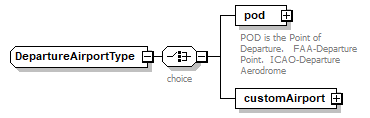

diagram FFSpec_p239.png
namespace http://www.jeppesen.com/aoc
children pod customAirport
used by
elements CustomBagaFlightKeyType/departureAirport CustomCommercialFlightKeyType/departureAirport GufiFlightKeyType/departureAirport

element DepartureAirportType/pod
diagram FFSpec_p240.png
namespace http://www.jeppesen.com/aoc
type AirportCodeType
properties
isRef 0
content complex
children iata icao icao other
annotation
documentation
POD is the Point of Departure.   FAA-Departure Point.  ICAO-Departure Aerodrome

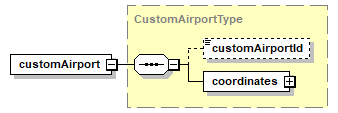

element DepartureAirportType/customAirport
diagram FFSpec_p241.png
namespace http://www.jeppesen.com/aoc
type CustomAirportType
properties
isRef 0
content complex
children customAirportId coordinates

complexType DepthType
diagram FFSpec_p242.png
namespace http://www.jeppesen.com/aoc
type extension of DepthRestriction
properties
base DepthRestriction
facets
Kind Value annotation
minInclusive
maxInclusive 10000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsDepthUnitsEnumTyperequired
annotation
documentation
Precipitation depth on runway. Common ICD. Runway conditions. See SCAP Interface Specification-Takeoff, Annex for descriptions of POPT(15). Valid only if runway condition is 2, 3, 5, or 6 as described in the SCAP POPT(15).

attribute DepthType/@units
type DepthUnitsEnumType
properties
isRef 0
use required
facets
Kind Value annotation
enumeration in
enumeration ft
enumeration mm
enumeration cm
enumeration

complexType DistanceBiasType
diagram FFSpec_p243.png
namespace http://www.jeppesen.com/aoc
type extension of DistanceBiasRestriction
properties
base DistanceBiasRestriction
facets
Kind Value annotation
minInclusive 0.0
maxInclusive 2500.0
attributes
Name  Type  Use  Default  Fixed  annotation
unitsBasicDistanceEnumTyperequired
documentation
nm = nautical miles
km = kilometers
ft = feet
m = meters

attribute DistanceBiasType/@units
type BasicDistanceEnumType
properties
isRef 0
use required
annotation
documentation
nm = nautical miles
km = kilometers
ft = feet
m = meters

complexType DistanceType
diagram FFSpec_p244.png
namespace http://www.jeppesen.com/aoc
type extension of DistanceRestriction
properties
base DistanceRestriction
used by
elements FpResponseSegmentType/distance BoundingAreaCircleType/radius
facets
Kind Value annotation
minInclusive 0.0
maxInclusive 50000.0
attributes
Name  Type  Use  Default  Fixed  annotation
unitsBasicDistanceEnumTyperequired
documentation
nm = nautical miles
km = kilometers
ft = feet
m = meters

attribute DistanceType/@units
type BasicDistanceEnumType
properties
isRef 0
use required
annotation
documentation
nm = nautical miles
km = kilometers
ft = feet
m = meters

complexType DmiIdentifierType

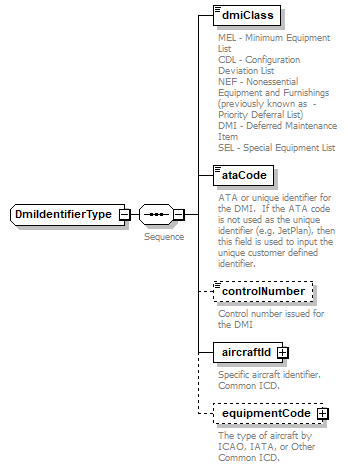

diagram FFSpec_p245.png
namespace http://www.jeppesen.com/aoc
children dmiClass ataCode controlNumber aircraftId equipmentCode

element DmiIdentifierType/dmiClass
diagram FFSpec_p246.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
isRef 0
content simple
annotation
documentation
MEL - Minimum Equipment List
CDL - Configuration Deviation List
NEF - Nonessential Equipment and Furnishings (previously known as  - Priority Deferral List)
DMI - Deferred Maintenance Item
SEL - Special Equipment List

element DmiIdentifierType/ataCode
diagram FFSpec_p247.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
content simple
annotation
documentation
ATA or unique identifier for the DMI.  If the ATA code is not used as the unique identifier (e.g. JetPlan), then this field is used to input the unique customer defined identifier.

element DmiIdentifierType/controlNumber
diagram FFSpec_p248.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
Control number issued for the DMI

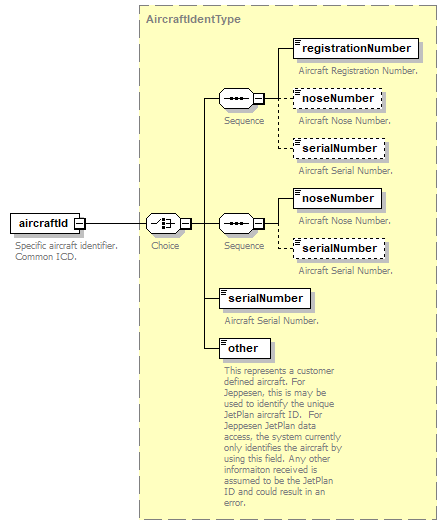

element DmiIdentifierType/aircraftId
diagram FFSpec_p249.png
namespace http://www.jeppesen.com/aoc
type AircraftIdentType
properties
isRef 0
content complex
children registrationNumber noseNumber serialNumber noseNumber serialNumber serialNumber other
annotation
documentation
Specific aircraft identifier.  Common ICD.

element DmiIdentifierType/equipmentCode
diagram FFSpec_p250.png
namespace http://www.jeppesen.com/aoc
type EquipmentCodeType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children iata icao icao other
annotation
documentation
The type of aircraft by ICAO, IATA, or Other Common ICD.

complexType ElevationType
diagram FFSpec_p251.png
namespace http://www.jeppesen.com/aoc
type extension of ElevationRangeRestriction
properties
base ElevationRangeRestriction
used by
element FpResponseAirportType/elevation
facets
Kind Value annotation
minInclusive -2000
maxInclusive 30000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsBasicHeightEnumTyperequired
documentation
ft = feet
m = meters

attribute ElevationType/@units
type BasicHeightEnumType
properties
isRef 0
use required
facets
Kind Value annotation
enumeration ft
enumeration
annotation
documentation
ft = feet
m = meters

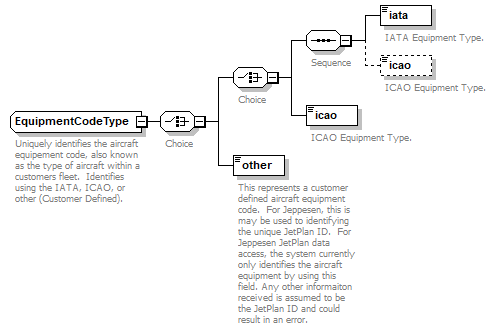

complexType EquipmentCodeType
diagram FFSpec_p252.png
namespace http://www.jeppesen.com/aoc
children iata icao icao other
used by
elements FlightInformationPointGroupType/equipment SuccessFlightInformationResponseType/successFlightInformationResponseGroup/equipment DmiIdentifierType/equipmentCode FpResponseAircraftType/equipmentCode
annotation
documentation
Uniquely identifies the aircraft equipement code, also known as the type of aircraft within a customers fleet.  Identifies using the IATA, ICAO, or other (Customer Defined).

element EquipmentCodeType/iata
diagram FFSpec_p253.png
namespace http://www.jeppesen.com/aoc
type IataEquipmentCodeType
properties
isRef 0
content simple
facets
Kind
